The Anybus Wireless Bolt PoE allows you to connect industrial devices to a wireless network (WLAN). It is placed on a control box or machine to create wireless access to it. The wireless transfer takes place via Bluetooth, Bluetooth Low Energy or WLAN (WiFi) technology.
The Wireless Bolt is IP65 and has a maximum range of 100 meters. He can communicate with equipment via Ethernet, Serial (RS232 / 485) or CAN. Regardless of the communication method, there is the same connector (2x9p; 3.5 connector) for power and communication.
Bluetooth or WLAN?
All versions of the Wireless Bolt support wireless communication via Bluetooth / Bluetooth Low Energy or WLAN (Wifi).
Choice: If the amount of data is the most important - choose WLAN. If the robustness / stability of the connection is the most important - choose Bluetooth.
Anybus Wireless Bolt - Ethernet

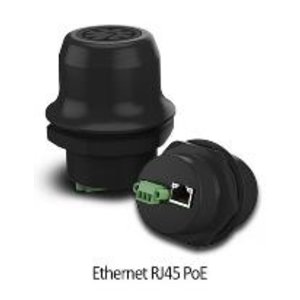

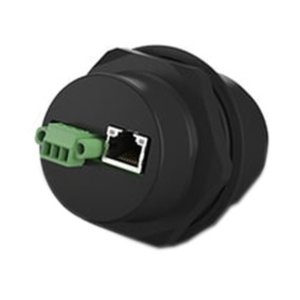

On the wired side, the Anybus Wireless Bolt communicates over Industrial Ethernet, supporting protocols such as BACnet / IP, PROFINET, EtherNet / IP, Modbus TCP and TCP / IP and UDP.
CONFIGURE MACHINES WIRELESS!

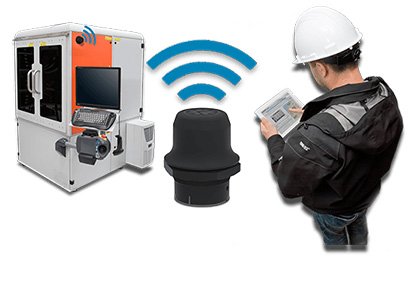

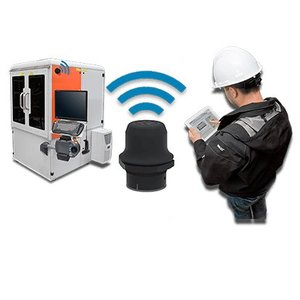

The Anybus Wireless Bolt gives you direct access to configure or solve problems in your machine park. With a range of 100 meters you can view internal web pages via a laptop, tablet or smartphone. BYOD (Bring Your Own Device) means that you no longer need an expensive HMI. A machine operator or technician does not need to physically go to a device to access it.
An all-in-one solution!

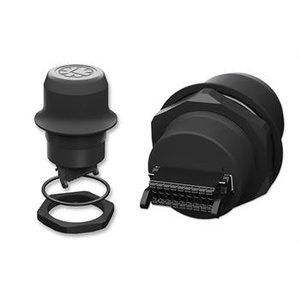

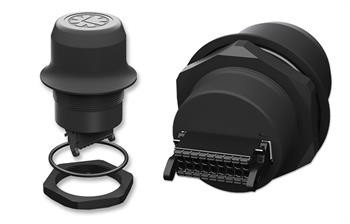

With Anybus Wireless Bolt you get an all-in-one package with, connector, communication processor and integrated antenna in the same housing, with an IP67 protection class. Regardless of the communication method you choose, you have the same connector (2x9p Plug Connector) for power and communication.
Model numbers: AWB2000, AWB2010, AWB2020, AWB2030
