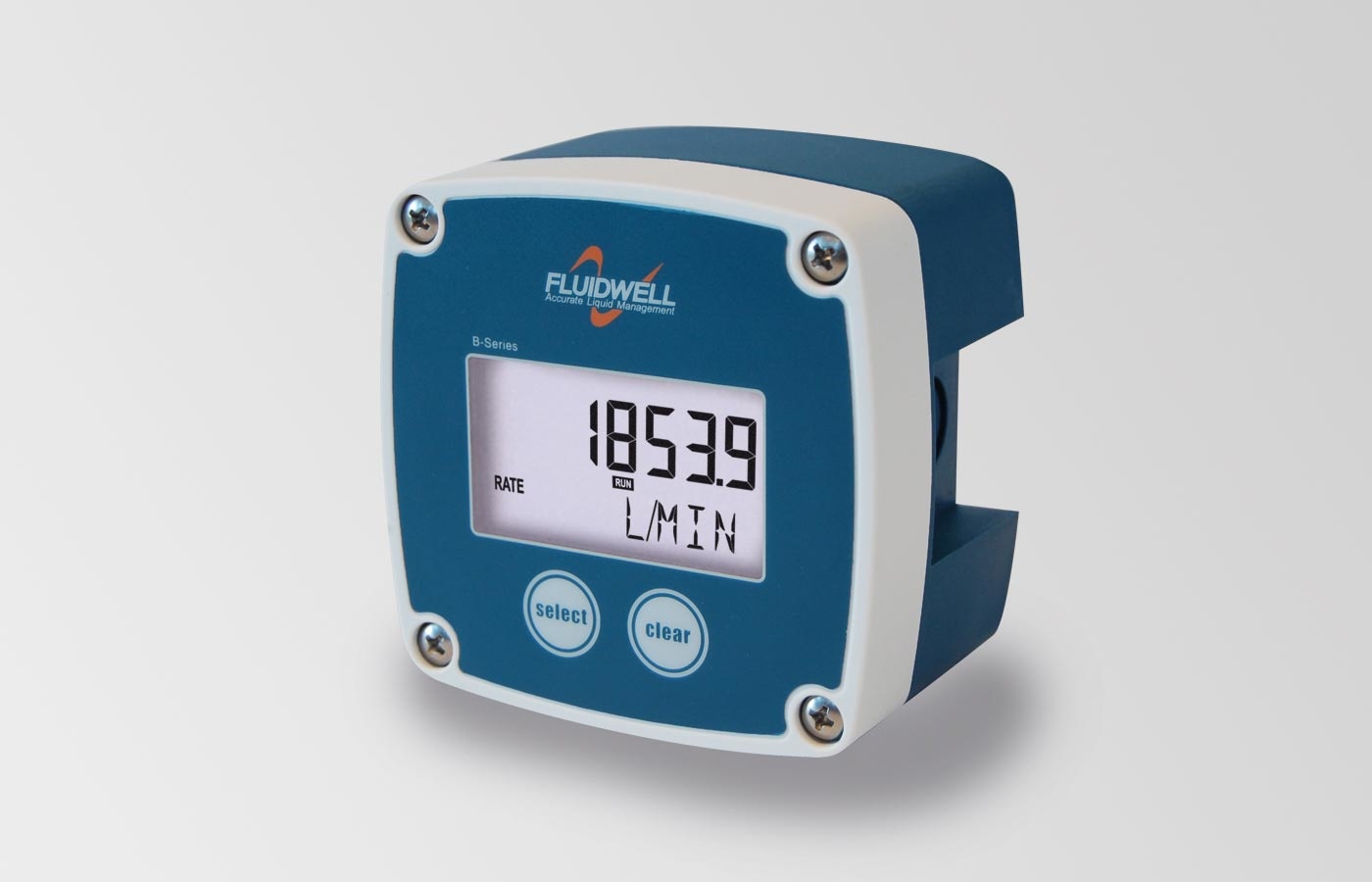

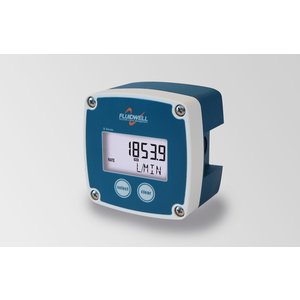

The B-Smart flow transmitter is the most advanced model in the B series, complete with pulse and analog output signals. The display shows flow, total and accumulated total. On-screen engineering units are easy to configure from a wide selection.
Basic flow measurement requiring transfer of the flow rate and / or totalizer function. The B-series offers you an economical solution for common industrial applications.
Signal output 1
Signal output 2

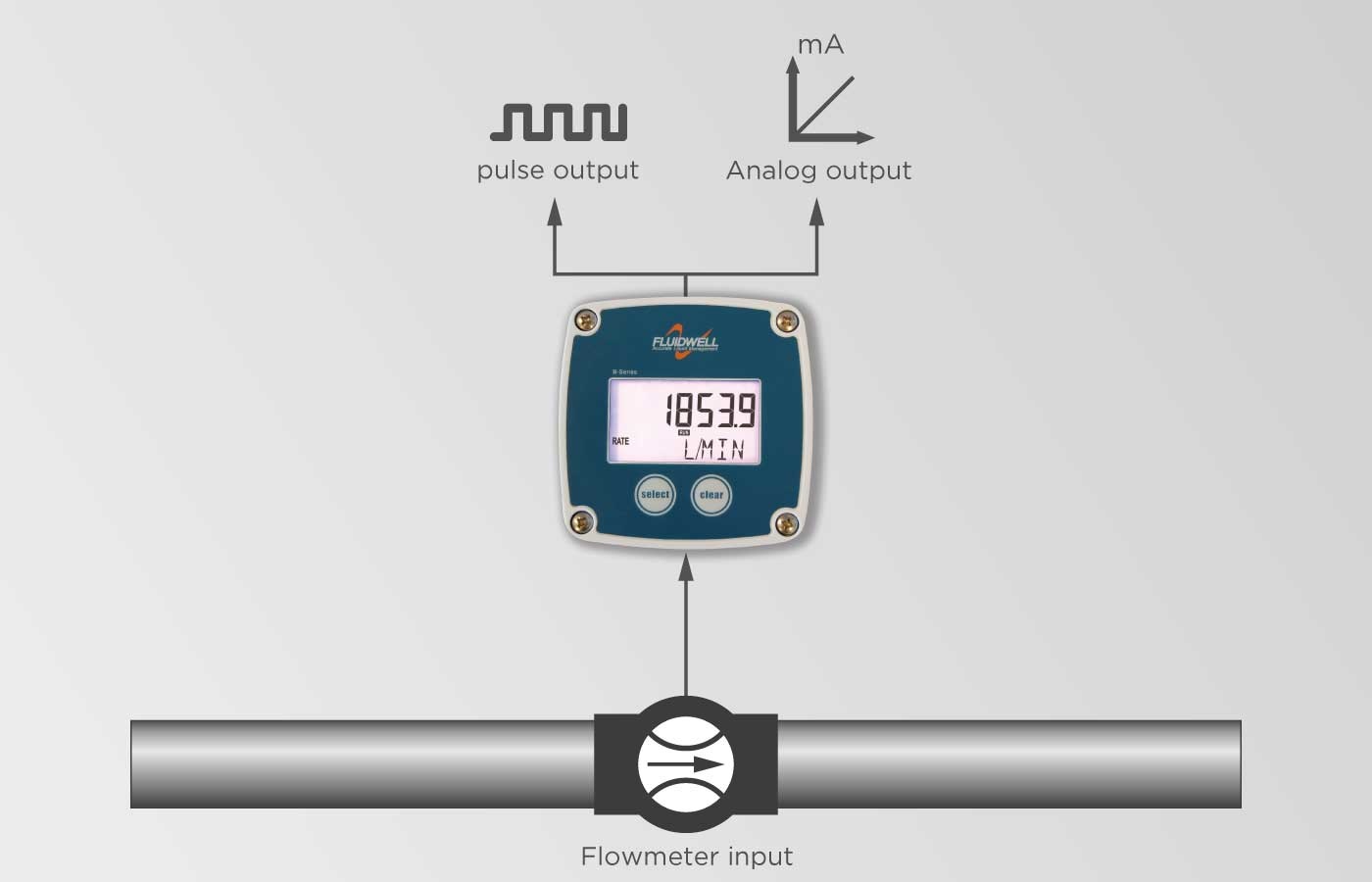

Flow rate Indicator / Totalizer with pulse and analog output
Pulse (Reed switch, Namur, NPN, PNP and coil)
Transistor - Pulse (NPN), cumulative total
Analog - Loop powered 3 - 22mA (10bit), flow rate

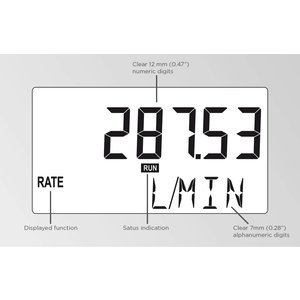

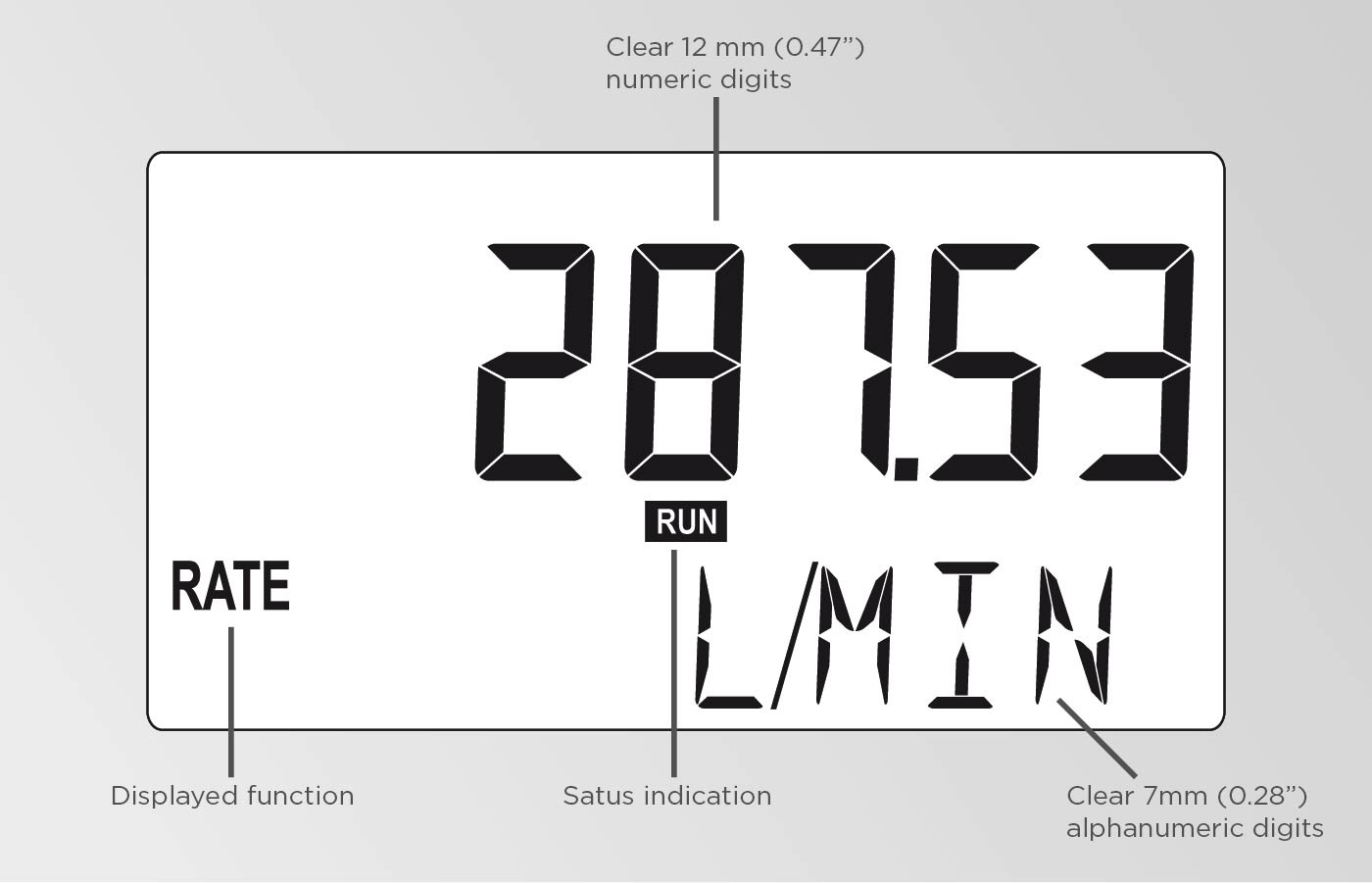

LCD, 7 characters | 12mm numeric & 7mm alphanumeric
L, m3, US gal, igal, Oil bbl, kg, lb or none.
IP65 GRP plastic field housing
-20 ° C to + 60 ° C (-4 ° F to + 140 ° F).
Lithium AA battery * and 10 - 30V DC-in
* backlight only works when connected to 10-30V DC-in
