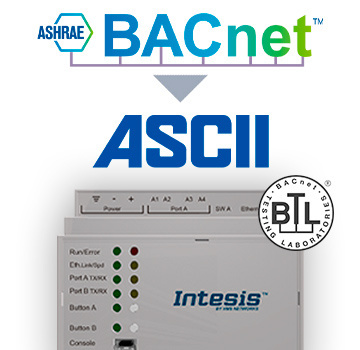

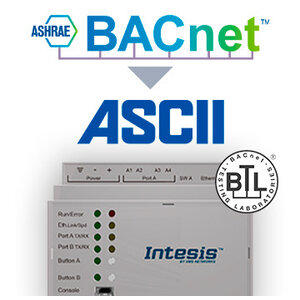

Intesis BACnet IP & MS/TP to ASCII IP & Serial Gateway, IN7004851K20000 - 1200 nodes

This BACnet MS/TP or IP server gateway connects BACnet devices with an ASCII IP or serial controller. This makes the BACnet data available in the ASCII network. Up to 1200 nodes.
Article number:
IN7004851K20000
Delivery time:
1 week
product-banner
€1.830,00

Excl. tax

€2.214,30

Incl. tax

Downloads & links
Data sheet
Overview Intesis gateways
Download MAPS software
Website Intesis

Intesis

BACnet IP & MS/TP client to ASCII IP & serial server

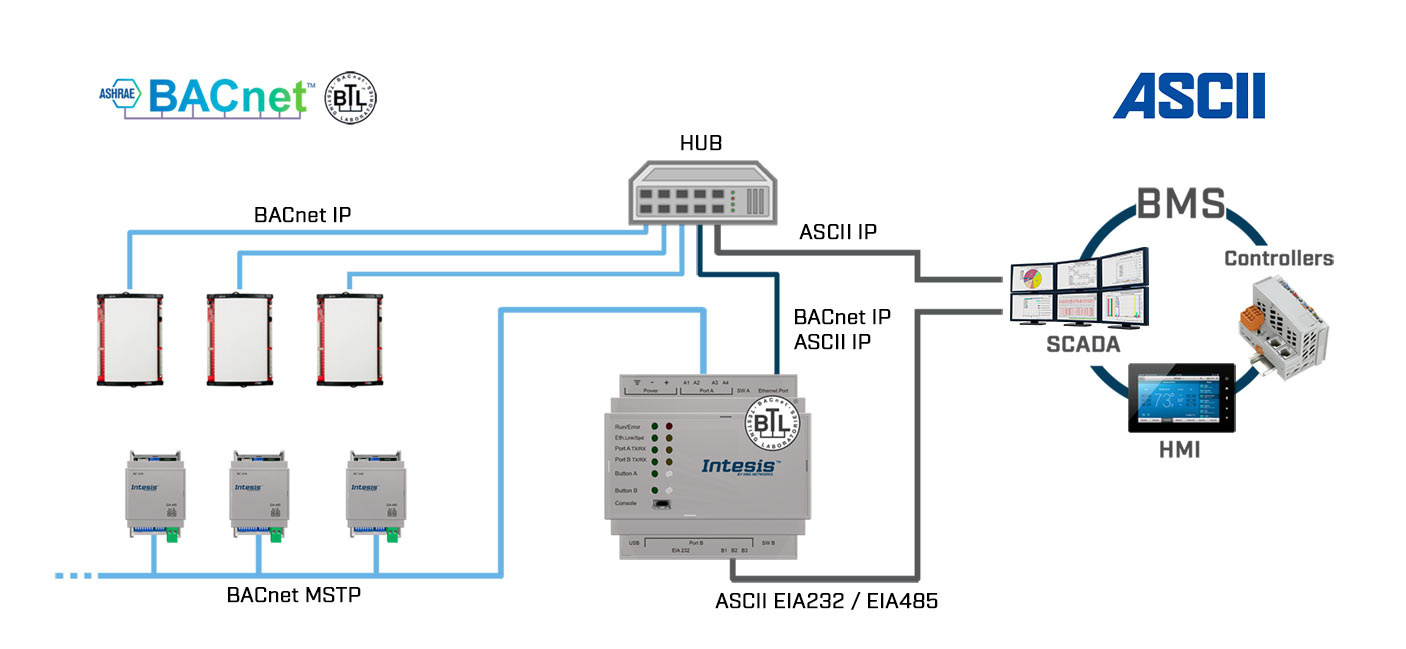

Integrate any BACnet MS/TP or BACnet IP server appliance with an ASCII BMS or an ASCII IP or ASCII serial controller. The purpose of this integration is to make data and resources of BACnet objects accessible from an ASCII-based operating system or device as if it were part of its own ASCII system and vice versa.

The configuration of the gateway is done using the Intesis MAPS software . This allows you to define your own settings for the device. It can also download all available project templates or import created/exported project templates to your computer.

Characteristics
  • UL certified
  • BTL certified
  • Support for both ASCII IP and ASCII Serial (232/485)
  • Automatically send a write request to the ASCII bus when the value changes
  • Use custom ASCII strings
  • Both BACnet IP and MS/TP supported
  • Ability to scan for BACnet devices with BACnet Explorer
  • Easy integration and updates with Intesis MAPS

One gateway for multiple applications and networks:

The IN700-485 series gateway is a common platform for BACnet and Modbus, with flexible and configurable gateways to integrate all BACnet or Modbus devices into BACnet, Modbus or ASCII system.

View here: Introduction Intesis 700 series

Other models:

IN7004851000000 Intesis Protocol Translator with Serial and IP support - 100 points
IN7004852500000 Intesis Protocol Translator with Serial and IP support - 250 points
IN7004856000000 Intesis Protocol Translator with Serial and IP support - 600 points
IN7004851K20000 Intesis Protocol Translator with Serial and IP support - 1200 points
IN7004853K00000 Intesis Protocol Translator with Serial and IP support - 3000 points
