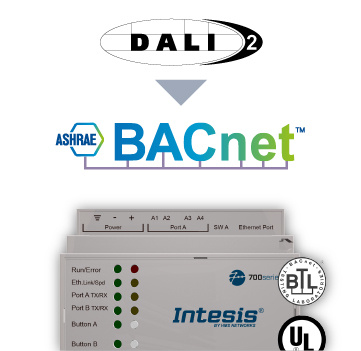

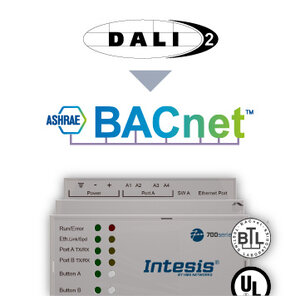

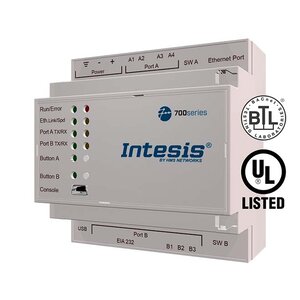

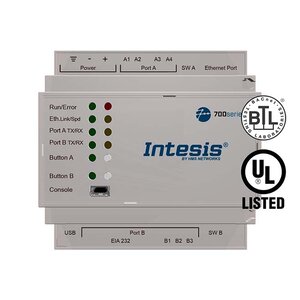

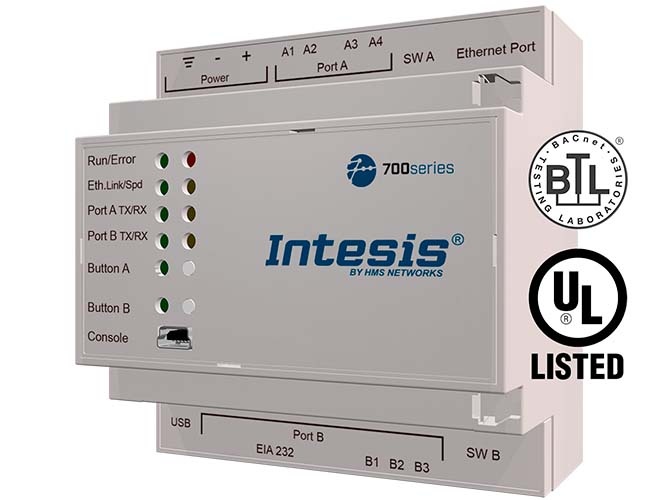

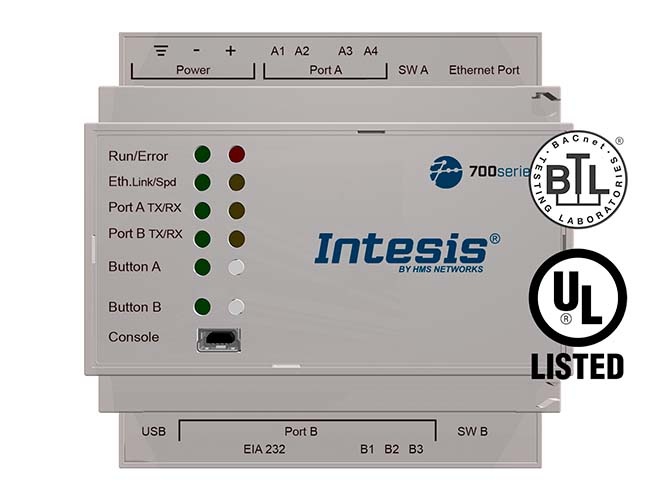

Intesis IN704DAL1280000 DALI-2 Protocol Translator with IP support - 2 DALI channels

DALI-2 to BACnet/IP & MS/TP server application with 2 DALI channels.

Integrate any DALI/DALI-2 driver and DALI-2 light sensor, or occupancy sensor with a BACnet BMS or a BACnet IP or BACnet MS/TP controller. The purpose of this integration is to make DALI devices and their associated data and resources accessible from a BACnet-based operating system or device, as if it were part of the native BACnet system and vice versa.

The gateway configuration is performed using the Intesis MAPS software . This allows you to define your own settings for the device. It can also download all available project templates or import created/exported project templates to your computer

Characteristics:

• UL certified
• BTL certified
• DALI-2 certified
• Support for BACnet/IP client and MS/TP master
• Advanced BACnet features available (trend logs, calendars, etc.)
• Support for DALI and DALI-2 drivers and DALI-2 input devices: push buttons, absolute inputs and presence and light sensors
• RGB and adjustable white integration for the demand for Human Centric Lighting
• DALI Local Control has been extended by adding presence and light sensors to the already supported push buttons and absolute inputs, allowing them all to be used as application controllers
• DALI Data: Implementation of DALI standard for energy and diagnostic data
• Integrated DALI power supply
• Maximum 64 drivers/ballasts + 64 DALI-2 input devices (sensors, push buttons or absolute inputs)
• Up to 10,000 signals available and 230 mA current guaranteed
• Easy integration and DALI commissioning with Intesis MAPS configuration tool
• Configuration via IP or USB (console) port
• Automatic updates for both Intesis MAPS and gateway's firmware
