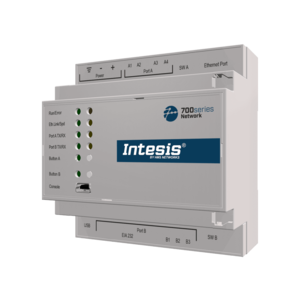

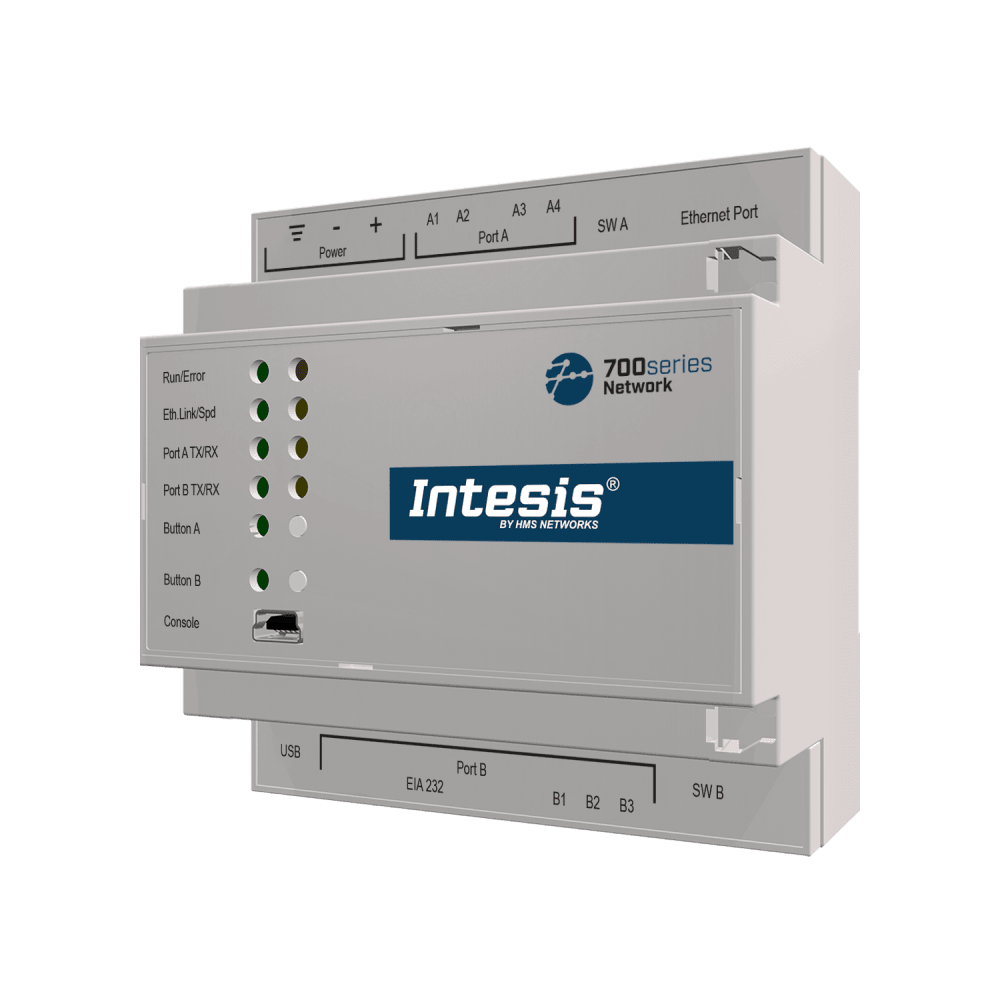

Intesis KNX TP to BACnet IP & MS/TP Server, IN701KNX3K00000 - 3000 data punten

This KNX TP server gateway connects KNX devices to a BACnet IP & MS/TP network. This makes the KNX data available in the BACnet network. Up to 3000 nodes.
Article number:
IN701KNX3K00000
Delivery time:
1 week
product-banner
€2.489,00

Excl. tax

€3.011,69

Incl. tax

Downloads & links
Datasheet
Overview Intesis gateways
Download MAPS software
Website Intesis

Intesis

KNX TP to BACnet IP & MS/TP server

Integrate any KNX device or installation with a BACnet BMS or a BACnet IP or BACnet MS/TP controller. The purpose of this integration is to make KNX communication objects and resources accessible from a BACnet based control system or device as if it were part of its own BACnet system and vice versa.

The configuration of the gateway is done using the Intesis MAPS software . This allows you to define your own settings for the device. It can also download all available project templates or import created/exported project templates to your computer.

Characteristics

  • UL certified
  • BTL certified
  • support for BACnet IP client)
  • BACnet Advanced features available (trend logs, calendars, etc.)
  • Support for KNX TP devices.
  • Control up to 3000 KNX communication objects.
  • Easy integration and updates with Intesis MAPS

One gateway for multiple applications and networks:

The IN701-KNX series gateway is a common platform for BACnet, KNX TP and Modbus, with flexible and configurable gateways to integrate all BACnet, KNX TP or Modbus devices into an ASCII system.

View here: Introduction Intesis 700 series

Other models:

IN701KNX1000000 Intesis protocol translator with KNX, Serial and IP support - 100 points
IN701KNX2500000 Intesis protocol translator with KNX, Serial and IP support - 250 points
IN701KNX6000000 Intesis protocol translator with KNX, Serial and IP support - 600 points
IN701KNX1K20000 Intesis protocol translator with KNX, Serial and IP support - 1200 points
IN701KNX3K00000 Intesis protocol translator with KNX, Serial and IP support - 3000 points
