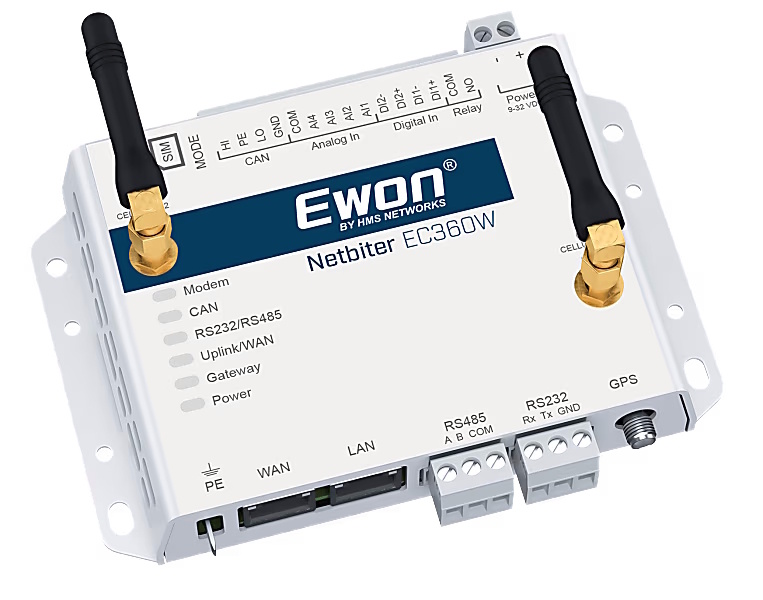

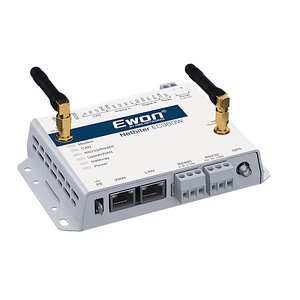

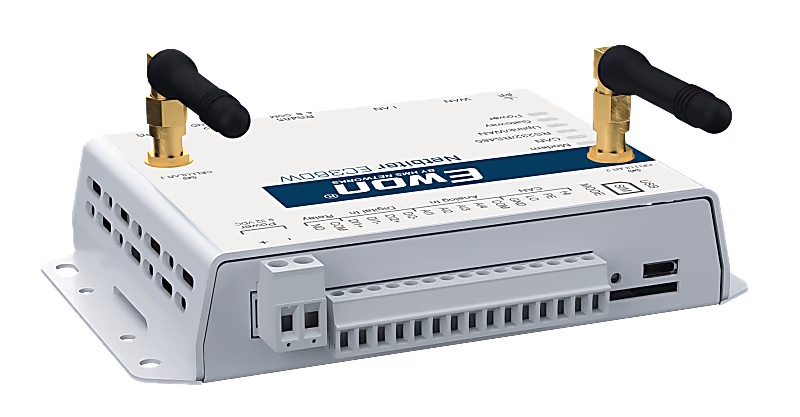

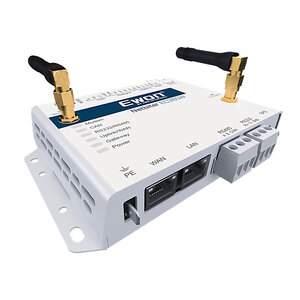

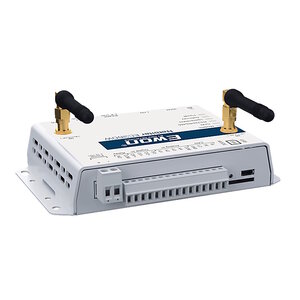

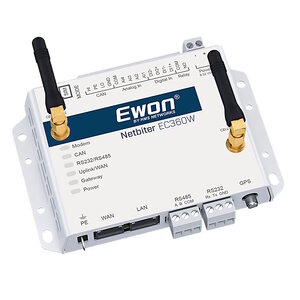

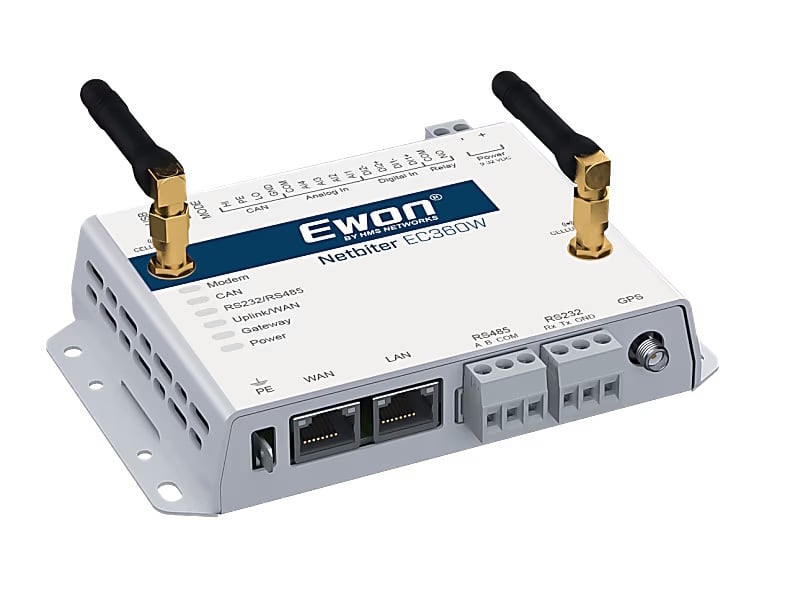

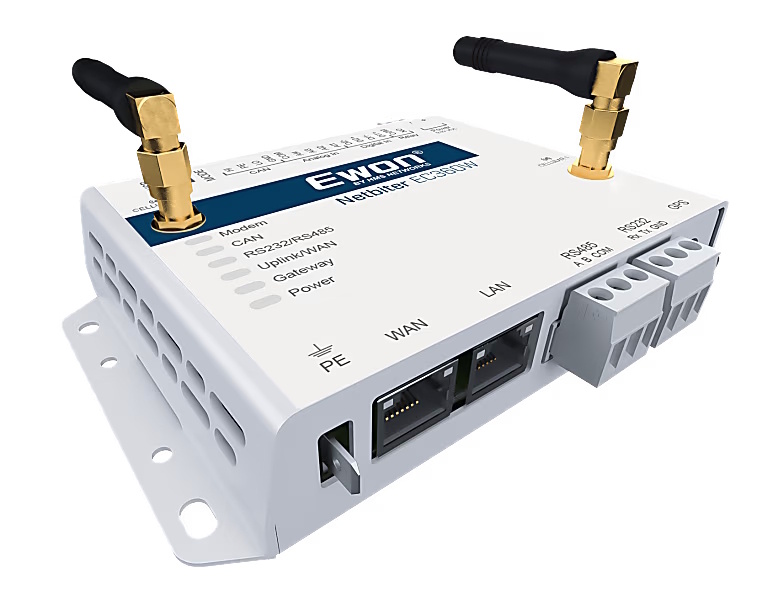

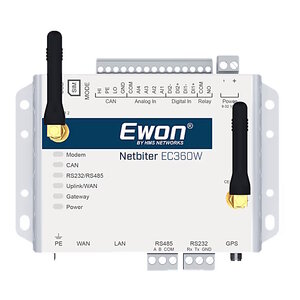

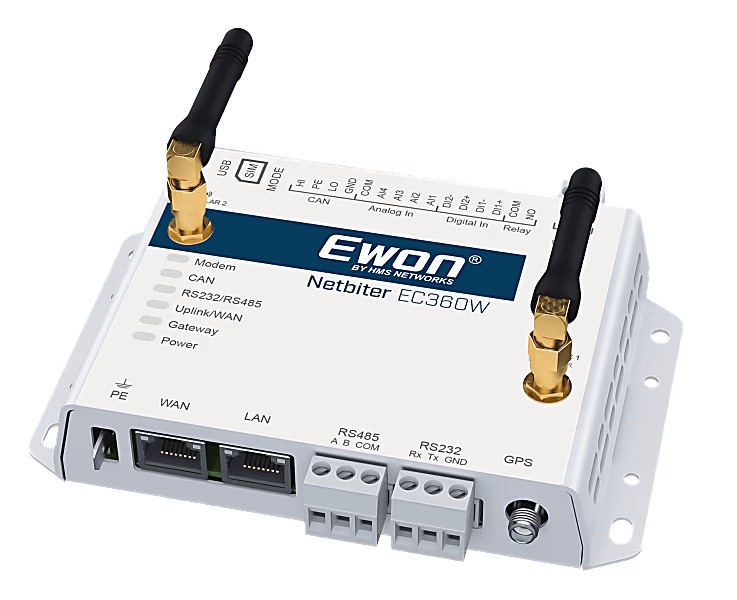

EWON Netbiter EC360, remote monitoring and / or access via fixed or mobile internet

Netbiter EC360 is an Edge gateway that allows data from your field equipment to be securely exchanged with the Argos IIoT platform via Ethernet or 4G. From here you can easily log into Argos and start managing your installations.
Article number:
EC360 NB1022
Availability:
In stock
Delivery time:
1-2 working days
product-banner
€599,00

Excl. tax

€724,79

Incl. tax

Downloads & links
Easy Connect brochure
Overview Netbiter (12 MB)
Website Netbiter HMS

The eWON Netbiter EC360 is part of the EWON Netbiter remote management solution. It connects to industrial machines via Modbus (serial or TCP / IP), SAE-J1939, Ethernet / IP, SNMP, or digital I / O and sends data to IIoT platform Netbiter Argos ™ via Ethernet or 4G mobile communication.


4G support
The EC360's 3G & 4G communication provides increased performance over GPRS and increases cellular geographic range. With support for 5 different 4G bands and 3 for 3G, the Netbiter EC360 is a product suitable for the global and mobile market.


Most important features


Designed for worldwide use with additional support for 5 different 4G bands

Suitable for "Remote Access" functions via the cloud-based Netbiter Argos ™ website.

Two completely separate Ethernet interfaces (WAN and LAN) allow secure communication to the installation in the field.

A built-in GPS receiver makes the EC360 suitable for mobile device management.

Analog and digital signals and sensors can be directly connected to the Netbiter gateway.

Remote access - Remote Machine and PLC configuration
The Netbiter EC360 supports the "Remote Access" functionality. This means that users can open a secure connection to remotely configure or control machines from any location using standard software. Remote access provides a secure VPN data tunnel to the remote equipment.

For example, if a Netbiter is connected to a PLC, it is possible to debug or program the PLC remotely from any location, using the same PLC configuration software as usual.
Read more about Remote Access here

How it works
The Netbiter EC360 gateway connects to your equipment using a serial, Ethernet or I / O connection.

Once the Netbiter gateway is connected, an automatic connection is made via the internet or mobile network (GSM / GPRS / 3G / 4G) to the Netbiter Argos data center.

This means that you only need to physically connect the gateway, the configuration can be done remotely from the Argos website.



Description EC360 Metal housing
Order code NB1022
Ethernet interface 10/100 Mbit / s
3G / 4G / GSM / GPRS (EU version)

3G: Bands 8.3.1 4G: Bands 20, 8, 3.7, 1 GPRS: Quad-Band GPRS Class 12 (850/900/1800/1900 MHz)

Relay output (max. 24 V, AC / DC, 1A) 1
Digital inputs 2 (dry contact)
Analog inputs (PT100, 0-10 V or 0-20 mA) 4, all supporting 0-10V or 0-20mA and 2 supporting PT100.
Analog outputs (0-10 V) -
Serial port # 1 RS-232, 1200-115200 baud
Serial port # 2 RS-485, 1200-115200 baud
Protocol support Modbus-RTU (ModbusASCII), SNMP, Modbus TCP, EtherNet / IP, SAE-J1939
3G antenna connection Built-in (antenna via SMA female)
Antenna connector SMA female
Wall mounting / DIN rail YES / YES (optional)
Mechanical dimensions 92 x 135 x 27 mm
Operating temperature -40 to +65 ° C
Nutrition 9-32 VDC
Power consumption 2.5W
Certificate CE (CUL-VS, FCC, IC, PTCRB. Telec, RCM ATEX / Haz.Loc pending)
Guarantee 3 years
