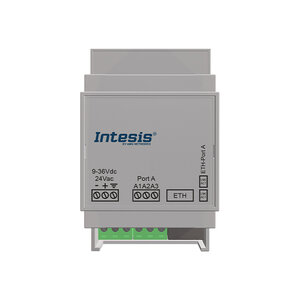

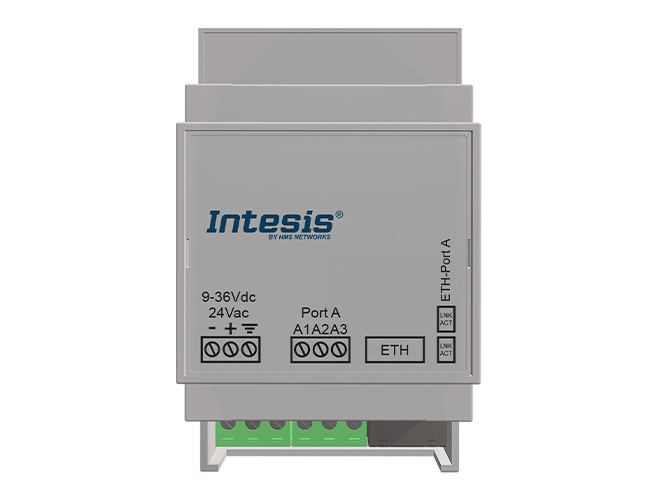

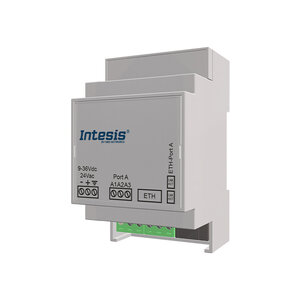

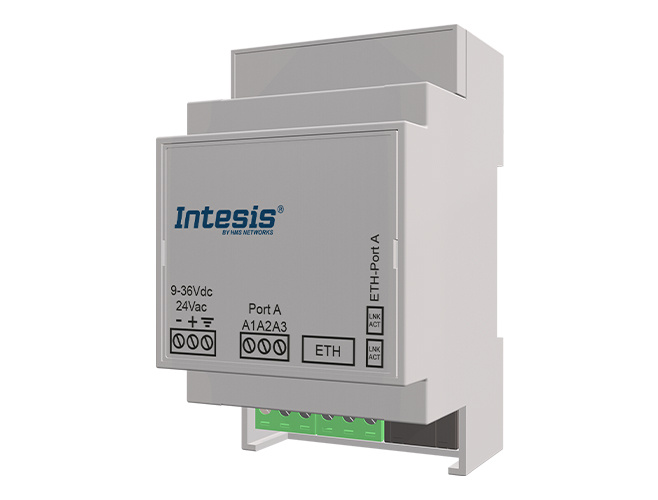

Intesis OCPP to Modbus TCP & RTU Server Gateway INMBSOCP0010100 1 charger with 7 connections

OCPP to Modbus TCP & RTU Server Gateway

Integrate OCPP 1.6-based electric vehicle charging stations with any Modbus RTU or TCP controller or connect the chargers to an external OCPP Central System (CS) and monitor them via Modbus. This gateway offers 2 types of OCPP functionalities that can be configured in the MAPS tool: - BMS central system: the gateway makes advanced operations of the charging points accessible from a Modbus PLC, making the BMS the central system of the EV charging process. - External OCPP central system: the gateway acts as a bridge between an external OCPP CS and the OCPP chargers, allowing measurement and status information of the connected chargers to be monitored.

Gateway that acts as an OCPP bridge between an external OCPP Central System and OCPP chargers.

FUNCTIONS:

Support for OCPP 1.6 JSON

Support for Modbus RTU and TCP

Flexible Modbus configuration (Baud rate, Data type)

OCPP Scan to find chargers in the network

Fix Modbus register card

OCPP operations supported in BMS CS mode:

-Authorize, RemoteStart/Stop Transaction, Start/StopTransaction, Local list management, HeartBeat, MeterValues, Reservation and Smart Charging Operations

OCPP measurements supported in Remote CS mode:

-Charger info, availability and meter values

Smaller dimensions, compact housing

UL certified
