Intesis Profinet to BACnet IP & MS/TP server gateway INBACPRT1K20000 - 1200 datapoints

This Profinet gateway connects BACnet IP & MS/TP networks with Profinet. The gateway works as a translator between the two networks. For 1200 BACnet objects.
Article number:
INBACPRT1K20000
Delivery time:
1-2 weeks
product-banner
€848,00

Excl. tax

€1.026,08

Incl. tax

Downloads & links
Datasheet
Overview Intesis gateways
Download MAPS software
Website Intesis

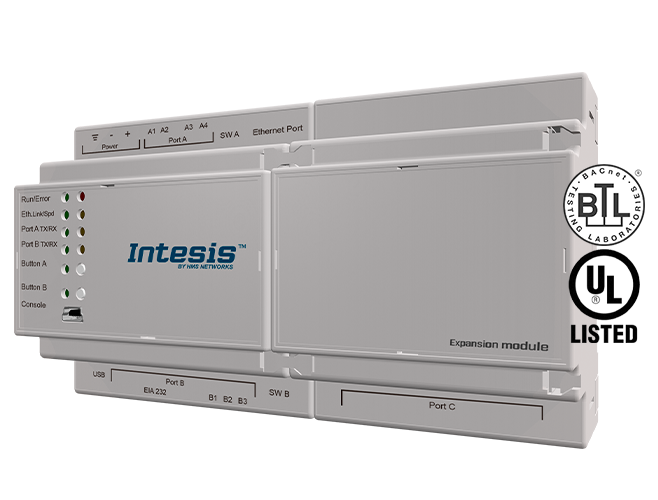

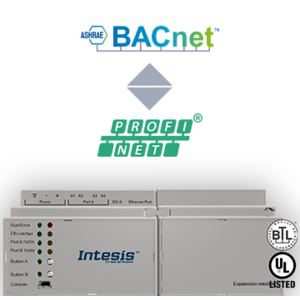

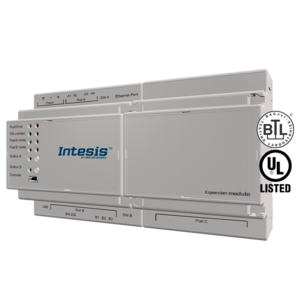

PROFINET to BACnet IP & MS/TP Server Gateway

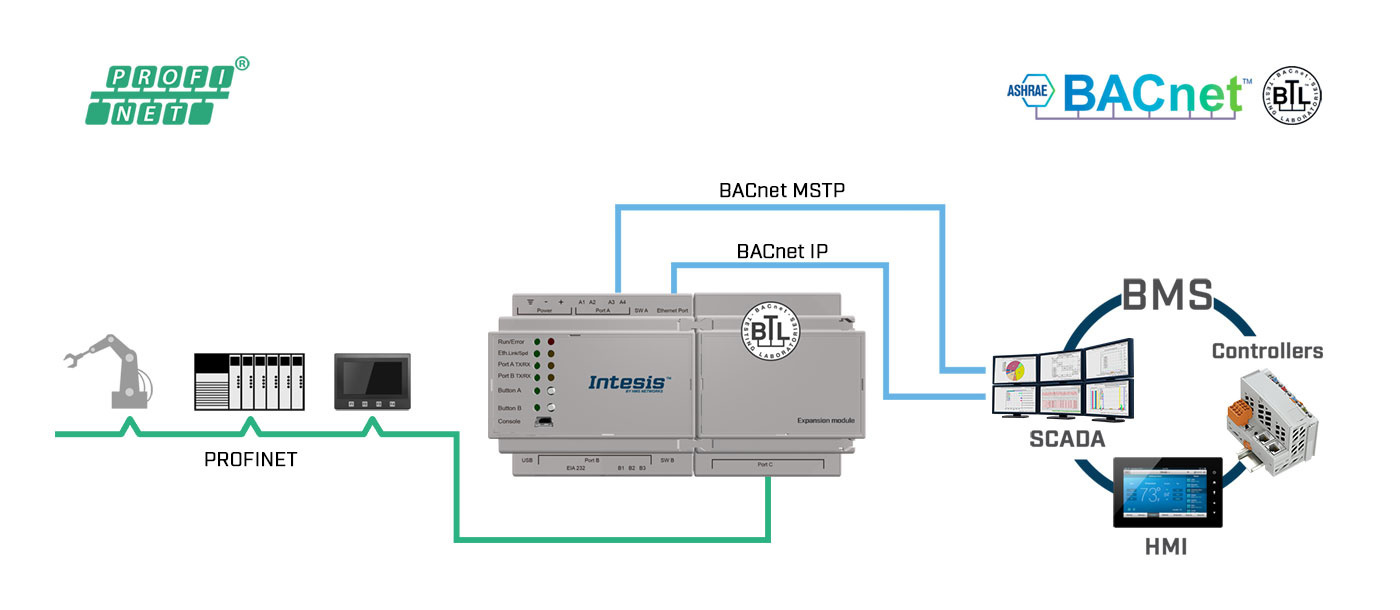

The Intesis BACnet-PROFINET gateway allows you to seamlessly inter-connect PLC/BMS systems and their connected devices between BACnet IP&MSTP Control systems and PROFINET networks.
This gateway works as a BACnet slave/server on the BACnet side and as a PROFINET I/O device on the PROFINET side.
INBACPRT1K20000

FEATURES

UL & BTL certified.
Support for BACnet IP or BACnet MSTP server.
BACnet Advanced features available (Trend logs, Calendars, etc.)
PROFINET I/O Device interface.
Control and monitoring over PROFINET IO Controllers.
Easy integration & updates with Intesis MAPS.
