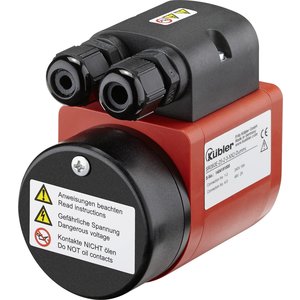

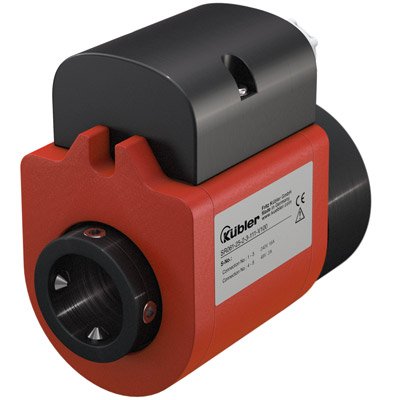

Kübler SR060E compact IP 64 slip ring, SR060E-25-2-3-132-V100
Compact slip ring for hygienic and food use. Housing dimensions: 60 mm, hollow shaft max : 25 mm. Interfaces: 3 power and 2 signal channels. Maintenance-free by using data channels of silver / precious metal.
- Article number:
- SR060E-25-2-3-132-V100
- Delivery time:
- 11-12 weeks
| Downloads & links |
| Datasheet SR060E |
| Slip ring principle film |
| Product catalog transmisson |
| Website Kübler |
The SR060E is a compact slip ring for up to 3 power outputs and 2 signal transmissions that are particularly suitable for use in Flowpackers. New innovative contact materials ensure a long service life and an extremely long service interval.
Maintenance-free by using data channels of silver / precious metal.
|
Product family
Size
Protection
Interface
Temperature
Dielectric strength
Maintenance cycles
Load max.
Hollow shaft max
Speed max.
|
SR060E
60 mm
IP 64
3 power, 2 signal
0 ... +75 C
1000V 60 sec.
100 Million
20A 240V
max.25 mm
500 rpm
|
