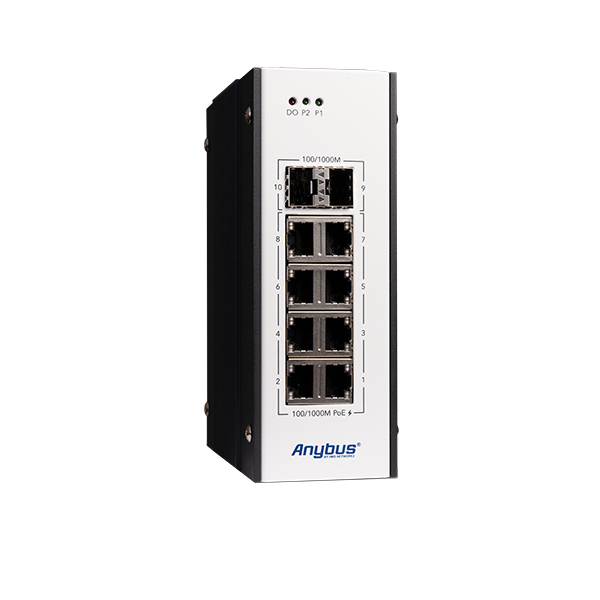

Anybus Anybus Managed L2 PoE Switch AWB5005

Anybus Managed L2 PoE Switch AWB5005 The Anybus managed Layer 2 PoE switch (Power over Ethernet) is designed to create reliable and secure data networks in harsh industrial environments. This versatile switch is ideal for factory automation applications. By transmitting both power and data over a single Ethernet cable, the switch provides a cost-effective and easy-to-use solution for wireless access points, security cameras and, when used with the Anybus Bolt, for connecting industrial machinery. The switch is equipped with two SFP (small form-factor pluggable) slots for fast uplink to backbone switches and eight Gigabit Ethernet ports with PoE capability for easy data connection and power via the same network cable.

A fiber optic connection can be used to enable long distance connections or to provide reliable data communications in environments with high electromagnetic interference.

A range of network management functions make it possible to segment, monitor and ensure data is processed as expected. With VLAN, QoS, IGMP Snooping and LACP/Trunk you can create highly reliable networks suitable for critical applications. RSTP (Rapid Spanning Tree Protocol) support enables ring-configured networks for greater resiliency and advanced security features, such as 802.1x port-based access control that provides a high level of protection against cyber threats.

FEATURES & BENEFITS

- Full gigabit PoE switch 802.at/af PoE+, 120 W total PoE budget, 30 W per port

- 8 x Gigabit PoE RJ45 ports

- 2 x gigabit (100/1000M) SFP ports

- Non-blocking switch fabric

Layer 2 management for reliable network management

- VLAN, QoS, IGMP snooping, LACP/Trunk

- Rapid Spanning Tree (RSTP) for redundancy

- Configuration via GUI, CLI or SNMP

Designed for industrial applications

- DIN rail mounting Full metal housing with IP30 rating

- Compact and robust design Developed for tough conditions

- Dual 24VDC booster power input (12~57VDC to 54V PoE output)

- Wide temperature range, -40°C~70°C

- High level EMC protection

Ordering information
