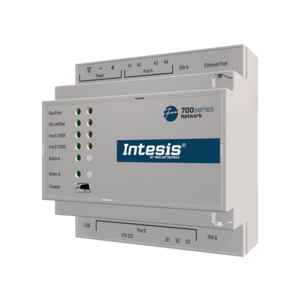

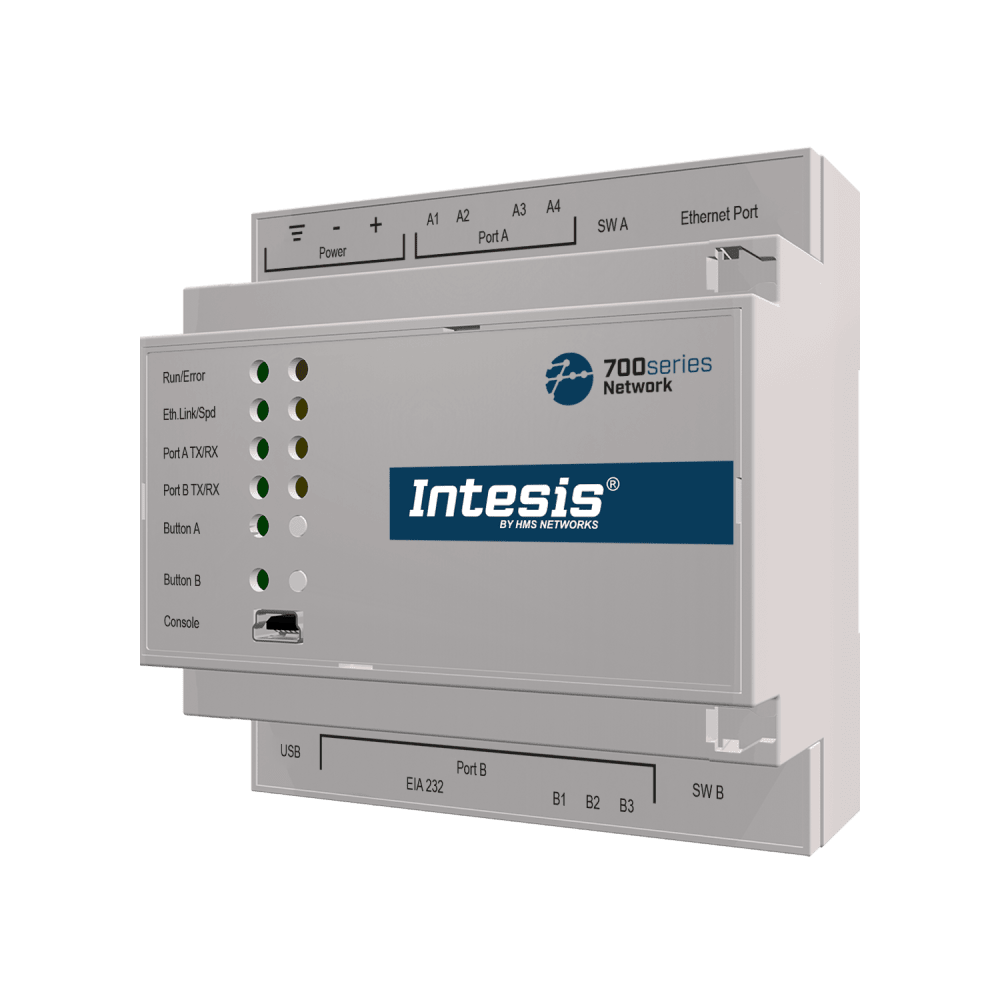

Intesis BACnet IP & MS/TP to ASCII IP & Serial Gateway, IN7004852500000 - 250 nodes

Intesis

BACnet IP & MS/TP client to ASCII IP & serial server

Integrate any BACnet MS/TP or BACnet IP server appliance with an ASCII BMS or an ASCII IP or ASCII serial controller. The purpose of this integration is to make data and resources of BACnet objects accessible from an ASCII-based operating system or device as if it were part of its own ASCII system and vice versa.

The configuration of the gateway is done using the Intesis MAPS software . This allows you to define your own settings for the device. It can also download all available project templates or import created/exported project templates to your computer.

Characteristics

• UL certified
• BTL certified
• Support for both ASCII IP and ASCII Serial (232/485)
• Automatically send a write request to the ASCII bus when the value changes
• Use custom ASCII strings
• Both BACnet IP and MS/TP supported
• Ability to scan for BACnet devices with BACnet Explorer
• Easy integration and updates with Intesis MAPS
