Fluidwell D030 Batch controller - with one output - panel mounting
The D030 is an easy to operate panel mount batch controller.
- Article number:
- D030-P-HB-OT-PX-XX-ZB
- Delivery time:
- 1-2 weeks
| Downloads & links |
| Datasheet D030 |
| Fluidwell website |

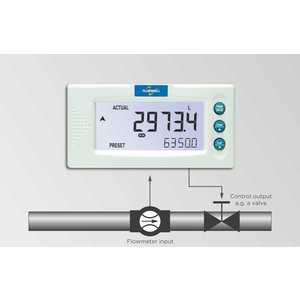

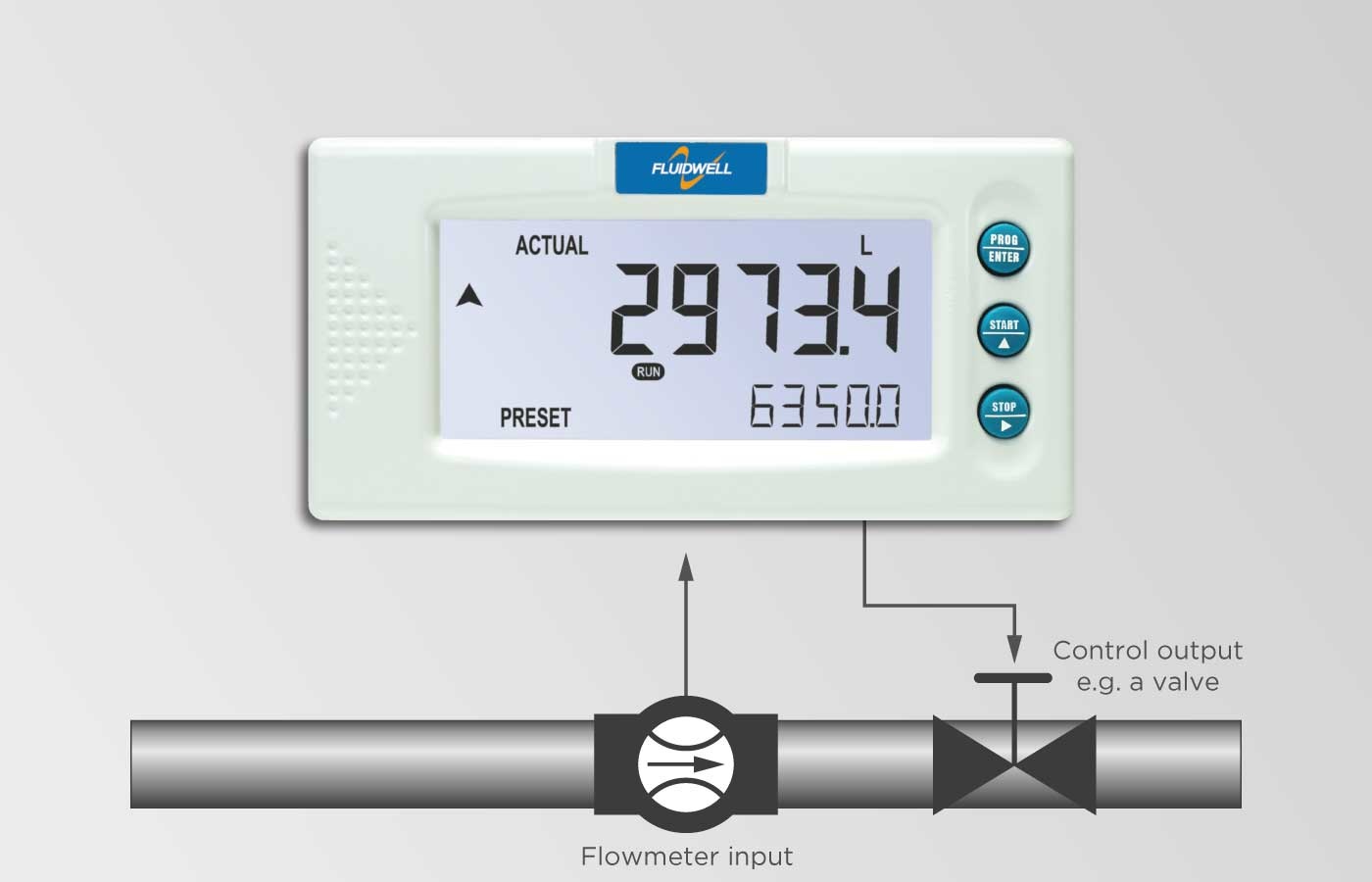

The D030 is an easy to operate panel mount batch controller. The operator can enter a batch quantity or run repeating batches. During the batch, the preset value is displayed, along with the batch (or remaining) quantity and units of measure. The automatic self-learning overrun correction ensures an accurate result every time.
Applications:
the D030 fits batch applications of small to very large quantities with single or repeating batches. The D series with standard DIN 144x72mm dimensions has a large display.
Specifications:
|
Product name
Functionality
Signal input
Signal outputs Display Units Housing
Temperature Nutrition |
D030-P-HB-OT-PX-XX-ZB
Flow rate Indicator / Totalizer
Pulse (Reed switch, Namur, NPN, PNP and coil)

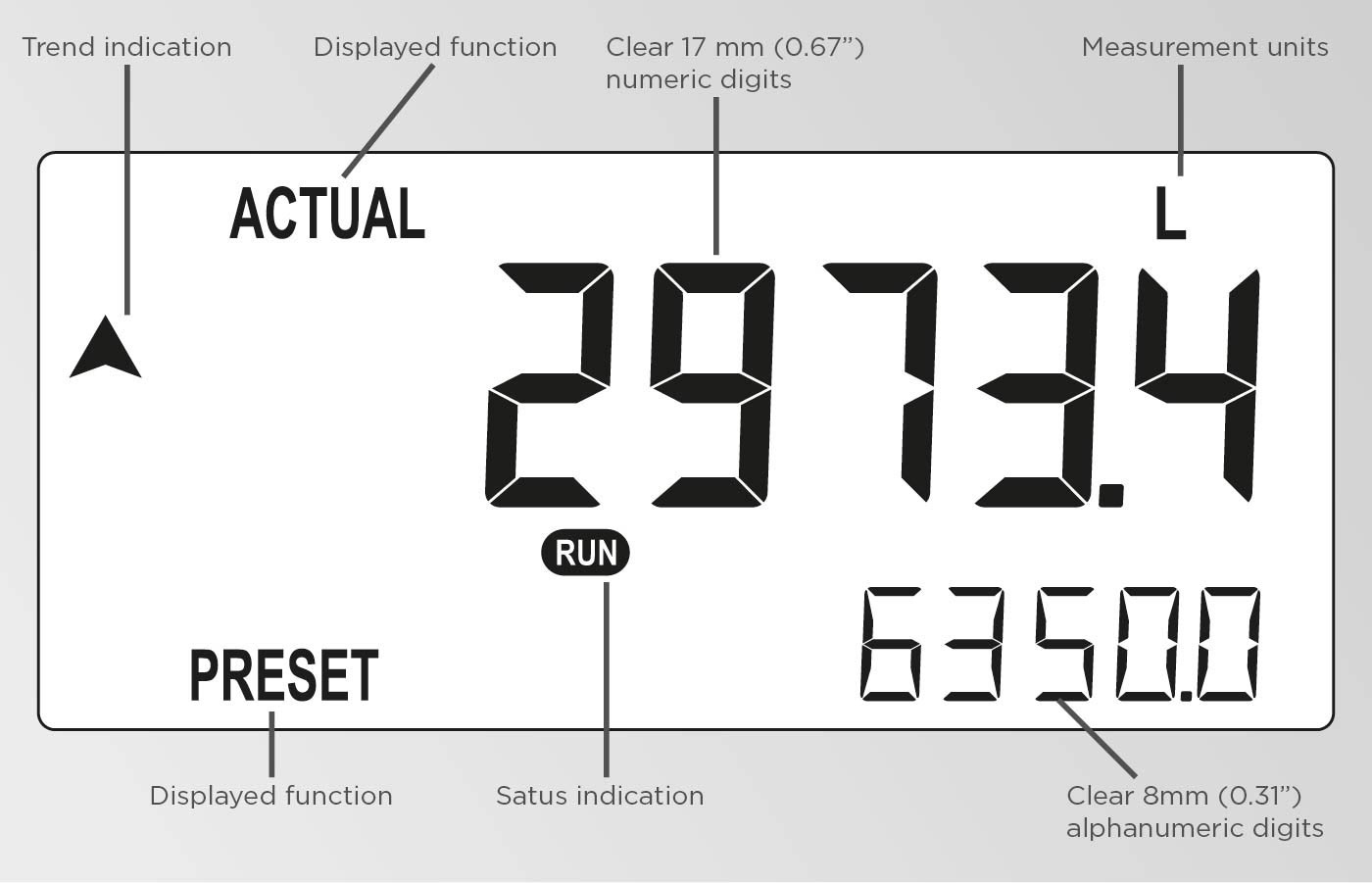

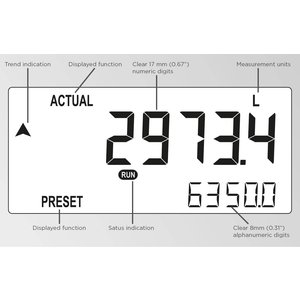

No LCD, 7 characters | 17mm numeric & 8mm alphanumeric
L, m3, GAL, USGAL, kg, lb, bbl, or no unit.
IP66 / 67 aluminum panel mounting
-40 ° C to + 80 ° C (-40 ° F to + 176 ° F). 8-30V DC-in
|
