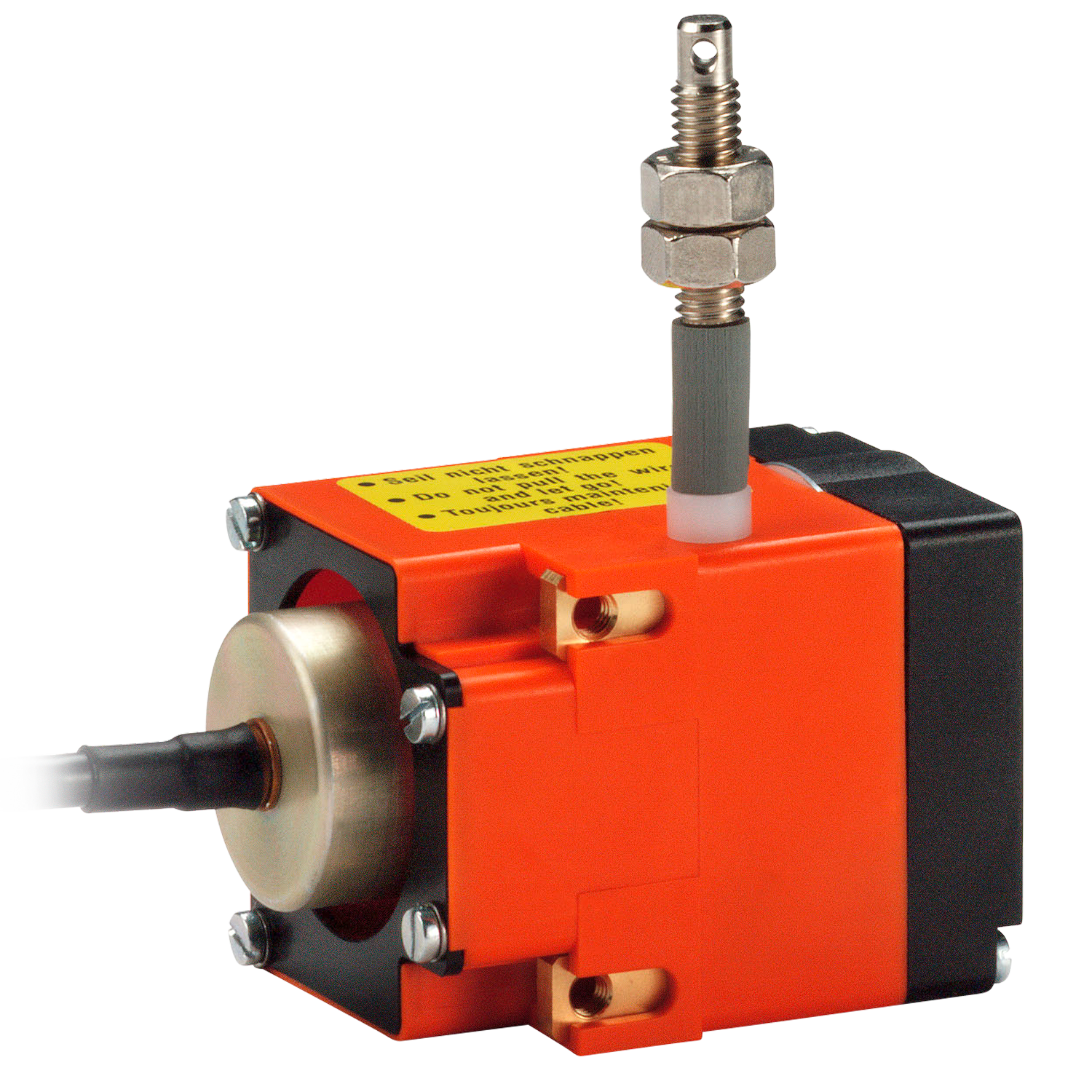

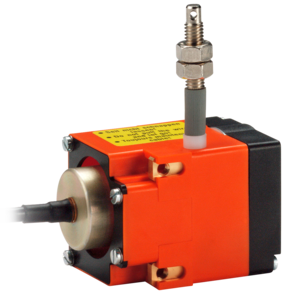

Kübler D5.2102.2441.1000, Draw wire encoder A40
The pull wire encoder A40 with pulse (HTL) output and a measuring length of 2000 mm is characterized by its compact design. The A40 is also available with a potentiometer or analog output (0-10V or 4-20mA).
- Article number:
- D5.2102.2441.1000
| Downloads & links |
| Datasheet A40 |
| Encoder catalog (23 MB) |
| Encoder selection tool |
| Website Kübler |
|
Product family
Size
Speed
Measuring range
Accuracy
Protection max.
Interfaces
Connection
Resolution
Temperature Nutrition
|
Miniature pull wire encoder A40
40x40x58 mm
0.8 m / s
2000mm
± 0.1%
max. IP54
Push-Pull
Cable
0.1 mm
-20 ... +85 ° C
8 ... 30 v DC
|
