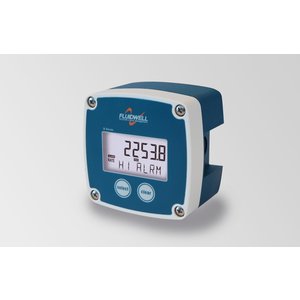

The B-Alert is a flow rate (flow) indicator and totalizer with continuous flow monitoring function. It allows you to set one low flow alarm value and one high flow alarm value. The display shows flow, total, accumulated total and alarms. On-screen engineering units are easy to configure from a wide selection.
Flow monitoring with accurate calculation over the full measuring range, requiring passing of the totalizer and monitoring of the flow function. The B series offers you an economical solution for common industrial applications.
Signal output 1
Signal output 2

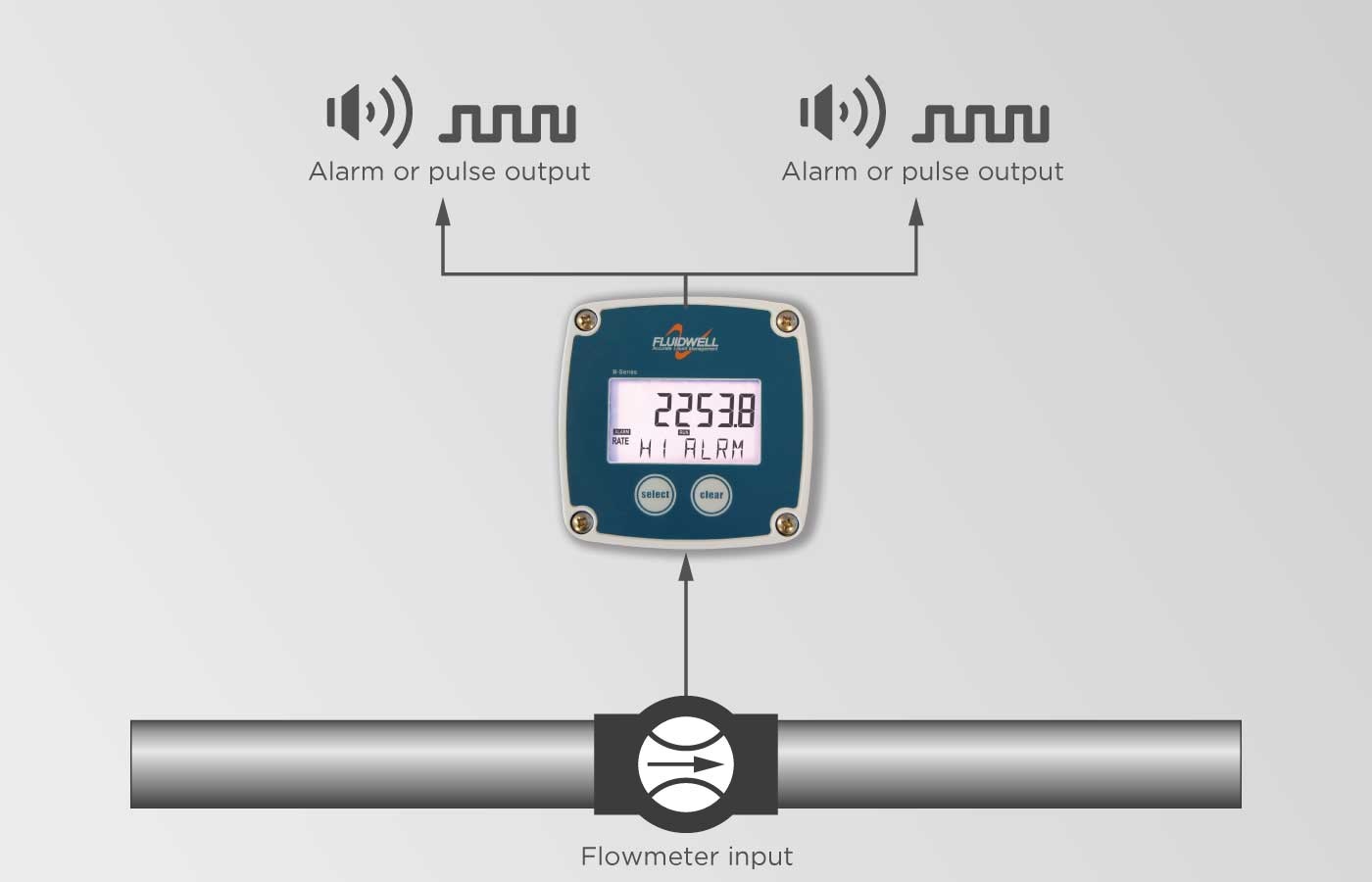

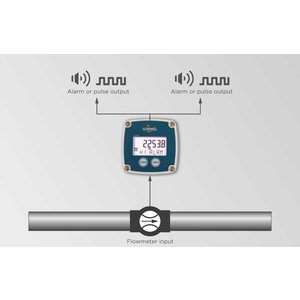

Flow rate Monitor / Totalizer with alarm pulse output
Pulse (Reed switch, Namur, NPN, PNP and coil)
2x Transistor - Pulse (NPN), high / low alarm (configurable)
Analog - Loop powered 3 - 22mA (10bit), flow rate
LCD, 7 characters | 12mm numeric & 7mm alphanumeric
L, m3, US gal, igal, Oil bbl, kg, lb or none.
IP65 GRP plastic field housing
-20 ° C to + 60 ° C (-4 ° F to + 140 ° F).
Lithium AA battery * and 10 - 30V DC-in
* backlight only works when connected to 10-30V DC-in
