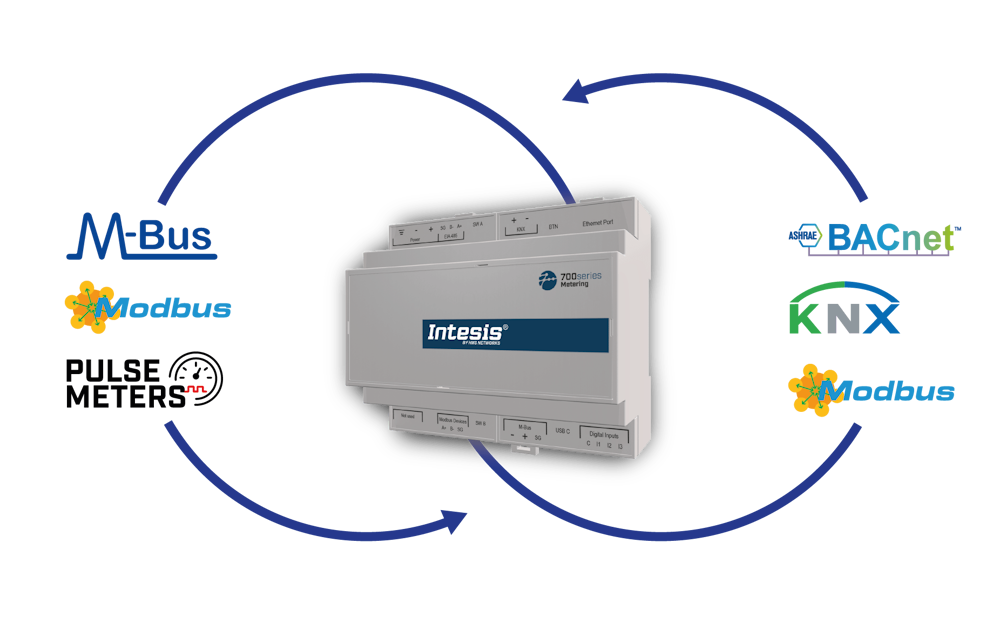

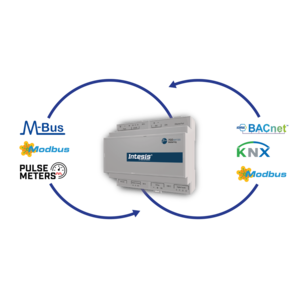

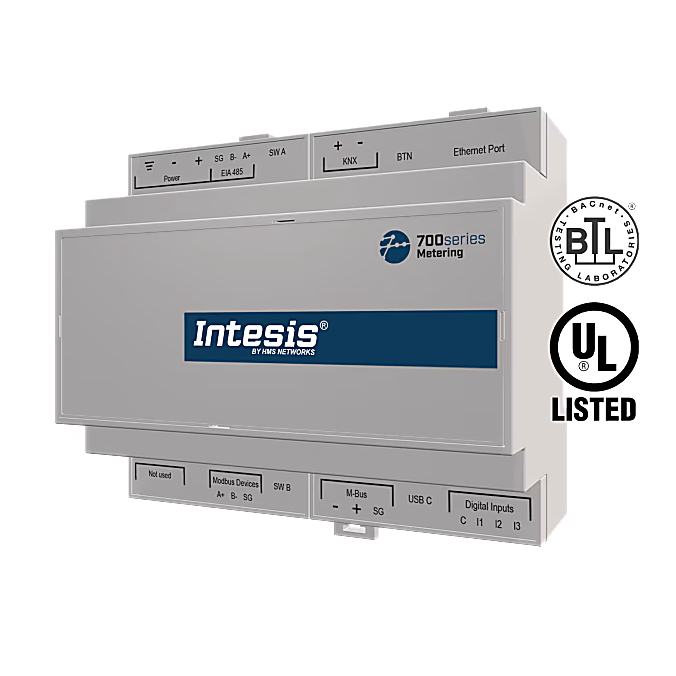

Intesis IN702MEB0200000 gateway M-Bus, Modbus, Digital pulses to BACnet/IP, BACnet MS/TP, KNX or Modbus RTU/TCP
This gateway is for fast and cost-effective integration of Modbus devices and meters, M-Bus participants and pulse meters into BACnet, KNX and Modbus systems.
The built-in M-Bus converter and auto-detection functions reduce installation time and simplify commissioning.
The gateway is configured using the Intesis MAPS software . This allows you to define your own settings for the device. It can also download all available project templates or import created/exported project templates to your computer.
Features and Benefits
- Multiple protocols supported on the BMS side: BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU and KNX TP
- The all-in-one integration of M-Bus, Modbus TCP, Modbus RTU and digital pulses simplifies complex meter projects and saves time and money.
- Flexible licenses for both small networks and large installations: 10, 20, 60 or 100 meters
- Improve project scalability and reduce initial costs.
- This gateway has a built-in M-Bus level converter.
- UL and BTL certified gateways
- Configurable interpolling intervals (up to 48 hours)
- This ensures that the meter battery lasts longer, especially in low energy environments or during renovation.
- Error detection of any meter device
- Rapid diagnostics and meter-level monitoring improve service quality and reduce troubleshooting time.
- Reduce commissioning time, effort and errors
- Advanced commissioning features minimize manual entry, including M-Bus scan to automatically detect M-Bus meters and import their signals, pre-defined configuration templates,
- Project import/export to clone the project configuration and load it into all necessary gateways.
