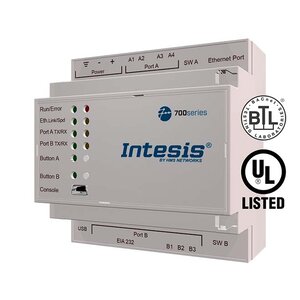

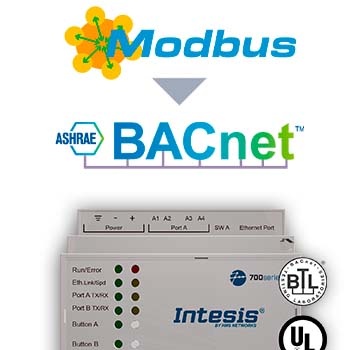

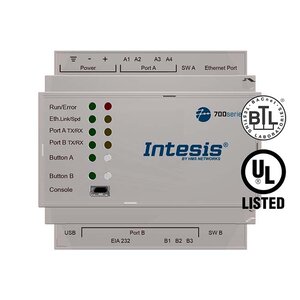

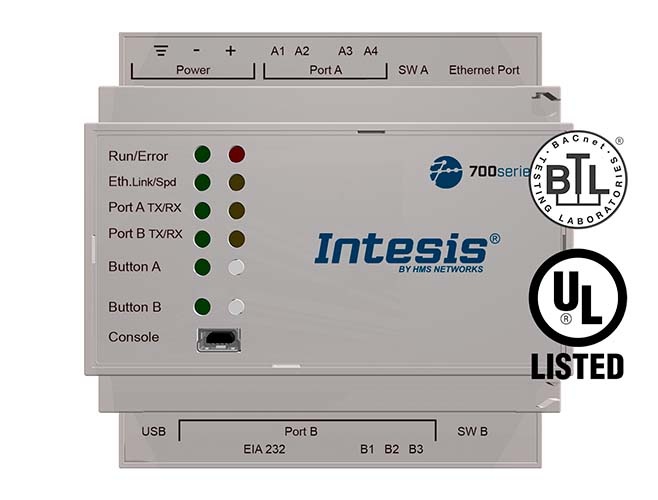

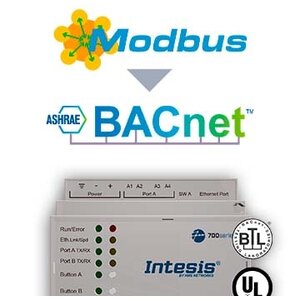

Intesis Modbus TCP & RTU Master to BACnet IP & MS/TP Server IN7004856000000 - 600 points

This Modbus TCP & RTU server gateway allows Modbus devices to communicate on a Bacnet network. Up to 5 simultaneous Modbus TCP servers and up to 32 Modbus devices per RTU node (without repeater) and up to 255 in total. 600 data points.
Article number:
IN7004856000000
Delivery time:
1 week
product-banner
€1.088,00

Excl. tax

€1.316,48

Incl. tax

Modbus TCP & RTU Master to BACnet IP & MS/TP Server

Integrate any Modbus RTU or TCP server device, or both at the same time, with a BACnet BMS or a BACnet IP or BACnet MS/TP controller. The purpose of this integration is to make Modbus system signals and resources accessible from a BACnet based control system or device as if it were part of its own BACnet system and vice versa.



FUNCTIONS:

UL Certified BTL Certified Support for BACnet IP Client and MSTP Master BACnet Advanced features available (trend logs, calendars, etc.) Support for 2 independent RTU ports for integration into BACnet IP < NEW! Up to 5 Modbus TCP nodes/devices Up to 32 Modbus devices per RTU node (without repeater) and up to 255 in total Ability to generate/download templates of your Modbus products Easy integration and updates with Intesis MAPS

Order Codes:

IN7004851000000 Intesis Protocol Translator with Serial and IP support - 100 points
IN7004852500000 Intesis Protocol Translator with Serial and IP support - 250 points
IN7004856000000 Intesis Protocol Translator with Serial and IP support - 600 points
IN7004851K20000 Intesis Protocol Translator with Serial and IP support - 1200 points
IN7004853K00000 Intesis Protocol Translator with Serial and IP support - 3000 points
