Intesis Modbus TCP/RTU to KNX TP gateway IN701KNX2500000 - 250 data points

Intesis Modbus TCP & RTU Master to KNX TP IN701KNX2500000

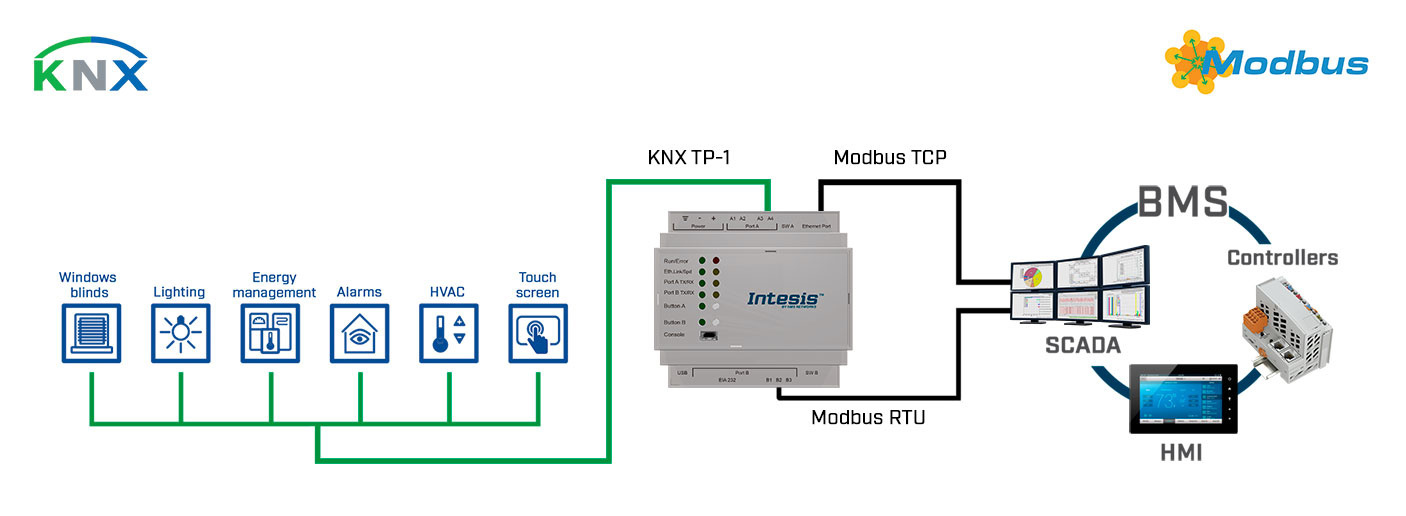

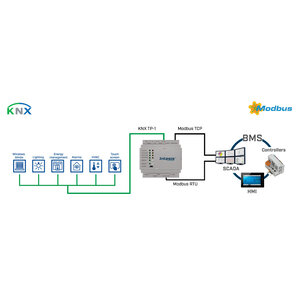

Integrate any Modbus RTU or TCP server device, or both simultaneously, with any KNX device or system. The goal of this integration is to make Modbus register data and resources from a KNX system accessible as if they were part of your own KNX system, and vice versa.

The gateway is configured using the Intesis MAPS software . This allows you to define your own settings for the device. It can also download all available project templates or import created/exported project templates to your computer.

Features

• UL certified
• Support for KNX TP
• Up to 3000 KNX communication objects
• KNX standard data point types (DPT) available
• Up to 5 Modbus TCP nodes/devices
• Up to 255 Modbus devices per node (RTU and TCP)
• Ability to generate/download templates of your Modbus products
• Easy integration and updates with Intesis MAPS

One gateway for multiple applications and networks:

The IN701-KNX series gateway is a general platform for KNX, with flexible and configurable gateways to integrate all BACnet or Modbus devices into a KNX BMS system.

View here: Introduction Intesis 700 series
