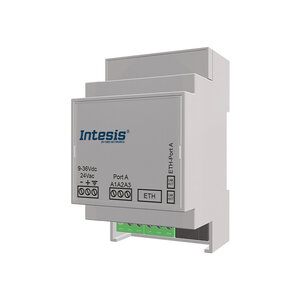

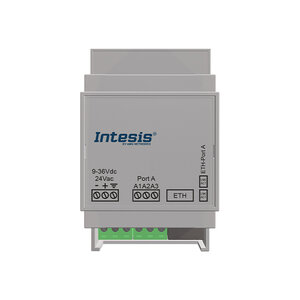

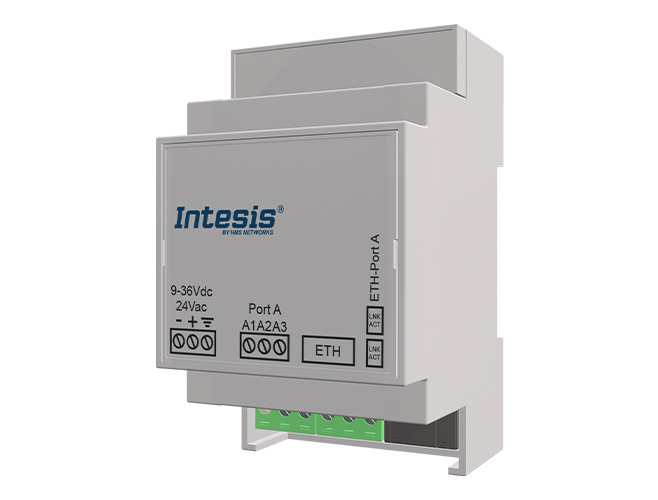

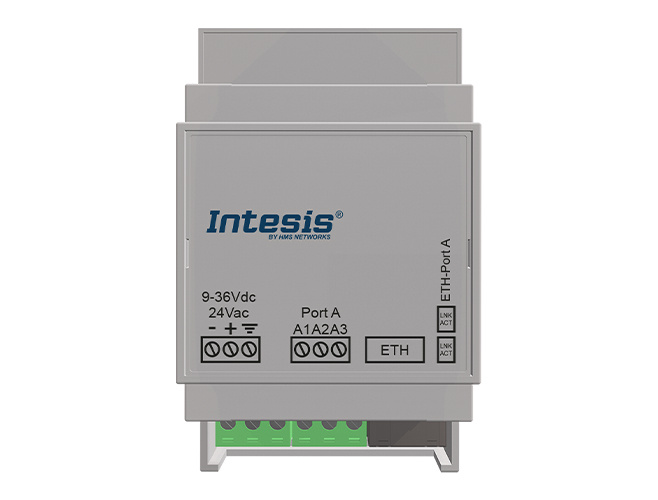

Intesis OCPP to Modbus TCP & RTU Server Gateway INMBSOCP0200100 up to 20 chargers with 7 connections each

OCPP to Modbus TCP & RTU Server Gateway

Integrate EV charging points based on OCPP 1.6 with any Modbus RTU or TCP controller or connect the chargers to an external OCPP Central System (CS) and monitor them via Modbus. This gateway offers 2 types of OCPP functionalities that can be configured in the MAPS tool: - BMS central system: the gateway makes advanced operations of the charge points accessible from a Modbus PLC, making the BMS the central system of the EV charging process. - External OCPP central system: The gateway acts as a bridge between an external OCPP CS and the OCPP chargers, allowing monitoring of measurement and status information from the connected chargers.

Gateway that acts as an OCPP bridge between a remote OCPP Central System and OCPP chargers.

FUNCTIONS:

Support for OCPP 1.6 JSON

Support for Modbus RTU and TCP

Flexible Modbus configuration (Baud rate, Data type)

OCPP Scan to find chargers in the network

Fix Modbus register map

OCPP operations supported in BMS CS mode:

-Authorize, RemoteStart/Stop Transaction, Start/StopTransaction, Local list management, HeartBeat, MeterValues​, Reservation and Smart Charging Operations

OCPP measurements supported in Remote CS mode:

-Charger info, availability and meter readings

Smaller dimensions, compact housing

UL certified

Order Codes:
