Kübler Sendix encoder 8.5000.B157.5000, incremental, optical

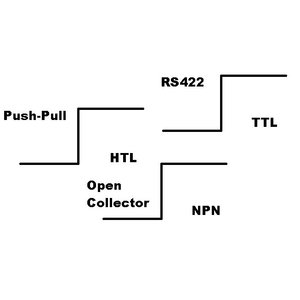

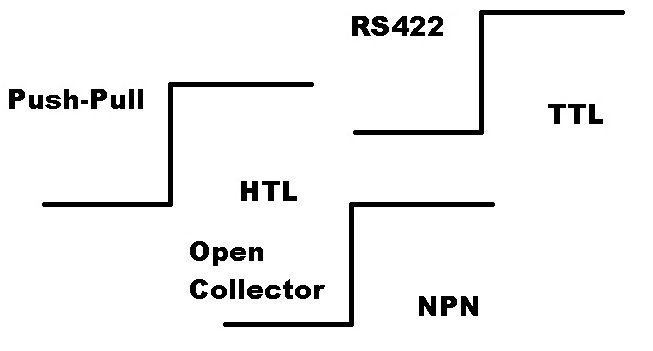

Kubler sendix 5000 incremental encoder, housing diameter 58 mm, output shaft 6x10 mm, Push-Pull ,10..30 VDC, M23 connector, 5000 PPR.
- Article number:
- 8.5000.B157.5000
- Availability:
- Out of stock
- Delivery time:
- 1-2 weeks
| Downloads & links |
| Data sheet Sendix 5000 |
| Encoder catalog (23 MB) |
| Encoder selection tool |
| Website Kubler |

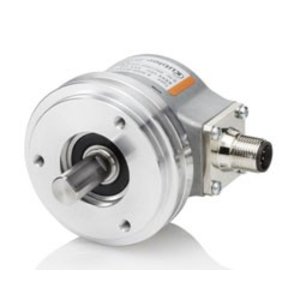

Kübler sendix 5000 encoder with output shaft, optical
• Increased vibration resistance and tolerance
installation errors, significantly reduced risk of downtime and machine
repairs thanks to the "Safety-LockTM Design" (double bearings).
• Wide temperature range from -40°C to +85°C.
• High shock resistance and vibration resistance
• IP66 and IP67 sealing possible
• Compatible with all US and European standards.
• Max. 5000 pulses per revolution, many different pulse number choices.
• Wide choice of connector variants (M23 12-pin, M12 8 or 5-pin, MIL or Sub-D) and wide range of cable lengths.
