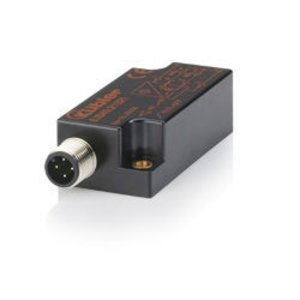

Kübler 8.IS40.14121 inclinometer, 1 angle. 0-360 °
Kübler inclinometer IS40-1D. With this sensor, inclinations of 0-360 ° can be measured. The robust housing makes the sensor suitable for measuring angles in harsh and demanding environments.
- Article number:
- 8.IS40.14121
- Availability:
- In stock
- Delivery time:
- 2-3 weeks
Specifications 8.IS40.14121:
| Downloads & links |
| Datasheet IS40-1D |
| Website Kübler |
|
Product
Dimensions
Protection
Interface Connection
Resolution max.
Temperature range
Power supply Measure range
Repeat accuracy |
IS40 1 dimension
60x30x20 mm
IP 68
Analogue 4 ... 20mA
M12 connector 0.05 °
-30 ... + 70 ° C
10 ... 30 VDC
0 ... 360 °
± 0.1%
|
Applications:
- Thermal solar energy and photovoltaic systems
- Agricultural and forestry machines
- Construction machinery
- Off-road vehicles
- Crane and hoisting equipment
- Industrial automation <br
