Kübler 8.IS40.21121 -inclinometer, 2 angles, ± 10 °

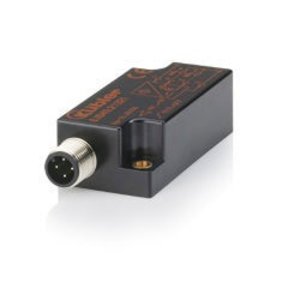

Kübler IS40-2D inclinometer. With this sensor angles can be measured in 2 directions (axes). Measuring range ± 10 °, interface 4..20 mA.
- Article number:
- 8.IS40.21121
- Availability:
- In stock
- Delivery time:
- on stock
Specifications 8.IS40.21121
| Downloads & links |
| Datasheet IS40-2D |
| Website Kübler |
| Dimensions | 60x30x20 mm |
| Protection | IP68 |
| Interface | analog 4 ... 20 mA |
| Connection | M12 connector |
| Measuring range | ± 10 ° |
| Temperature range | -30 ° C ... 70 ° C |
| Power supply | 10 ... 30 VDC |
Applications:
- Thermal solar and photovoltaic systems
- Agricultural and forestry machines
- Construction machinery
- Off-road vehicles

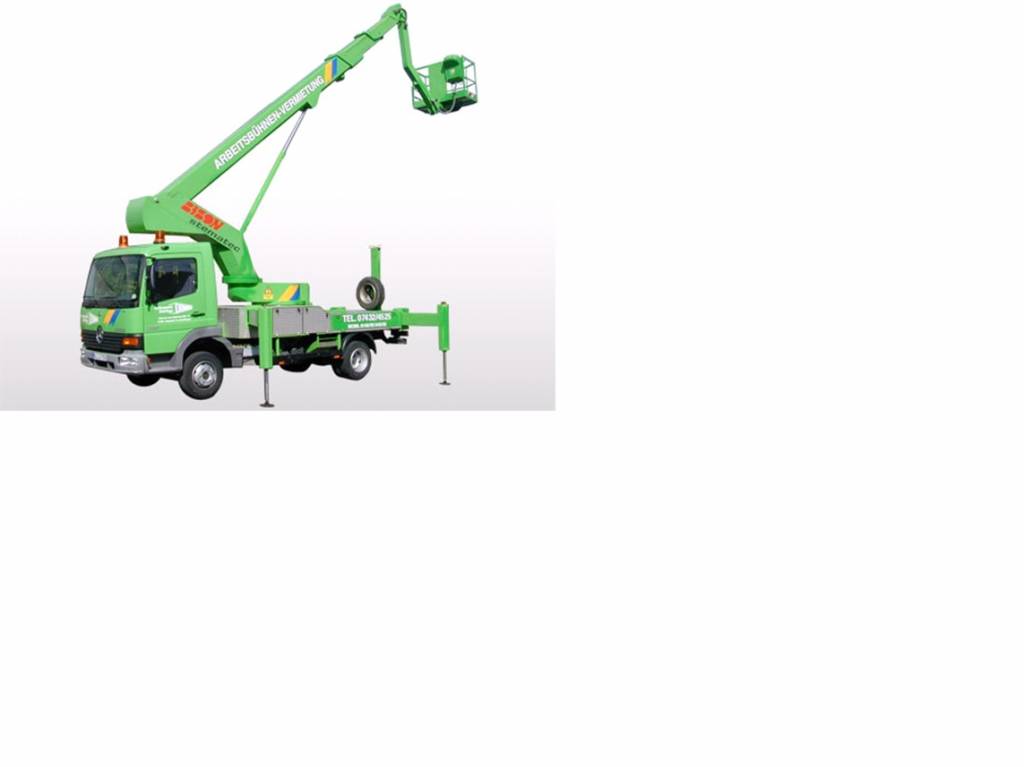

- Crane and hoisting equipment
