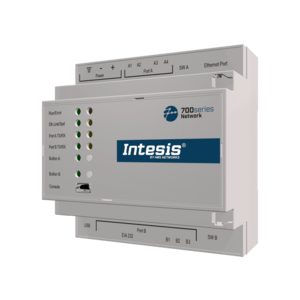

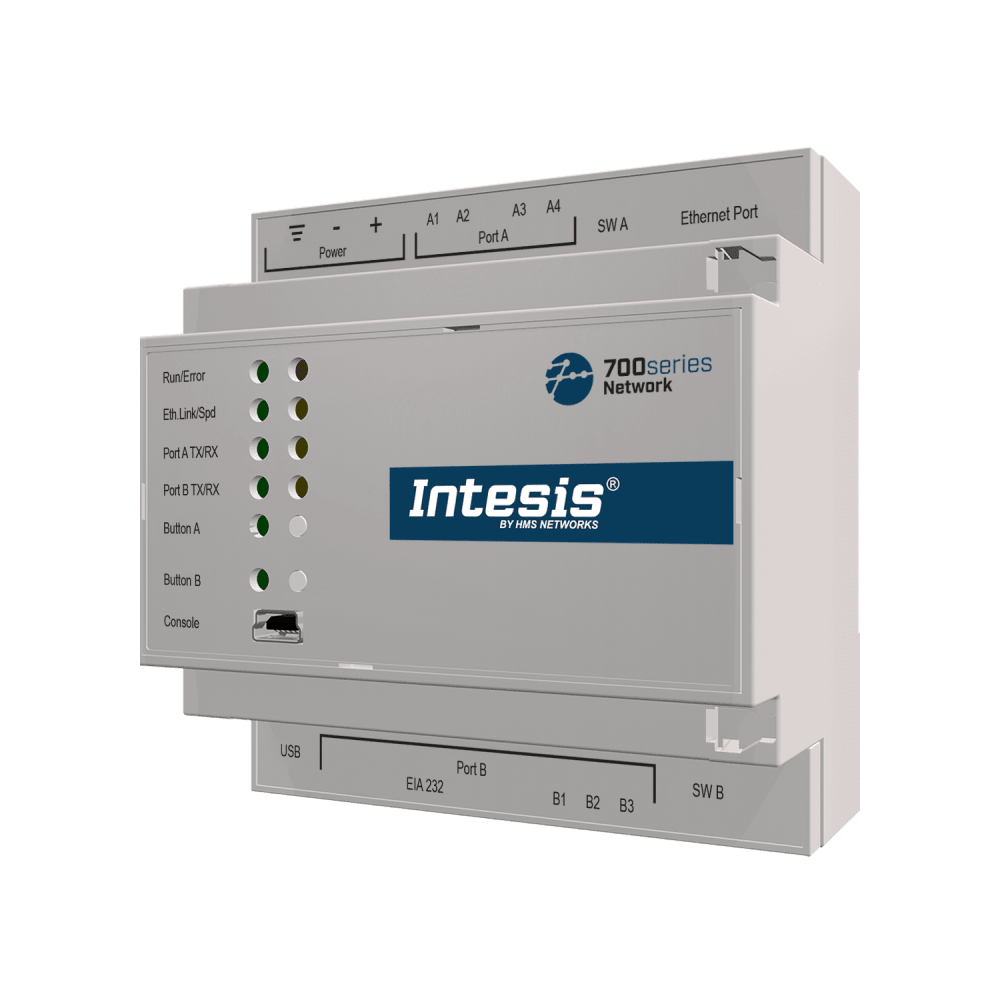

Intesis BACnet IP & MS/TP Client to KNX TP gateway, IN701KNX6000000 - 600 data punten

This BACnet IP & MS/TP client gateway connects KNX devices to a BACnet network. This makes the KNX data available in the BACnet network. Up to 600 nodes.
Article number:
IN701KNX6000000
Delivery time:
1 week
product-banner
€1.264,00

Excl. tax

€1.529,44

Incl. tax

Downloads & links
Data sheet
Overview Intesis gateways
Download MAPS software
Website Intesis

Intesis

BACnet IP & MS/TP client to KNX TP

Integrate any BACnet MS/TP or BACnet IP server device with any KNX device or system. The purpose of this integration is to make data and resources of BACnet objects accessible from a KNX system, as if it were part of its own KNX system and vice versa.

The configuration of the gateway is done using the Intesis MAPS software . This allows you to define your own settings for the device. It can also download all available project templates or import created/exported project templates to your computer.

Characteristics:

  • UL certified
  • BTL certified
  • Support for KNX TP
  • Up to 3000 KNX communication objects
  • KNX standard data point types (DPT) available
  • Both KNX TP and BACnet IP as well as MS/TP are supported
  • Ability to scan for BACnet devices with BACnet Explorer
  • Easy integration and updates with Intesis MAPS
One gateway for multiple applications and networks:

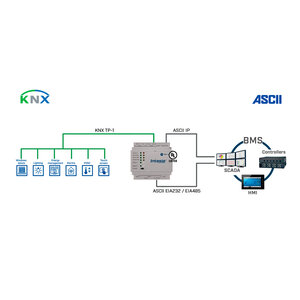

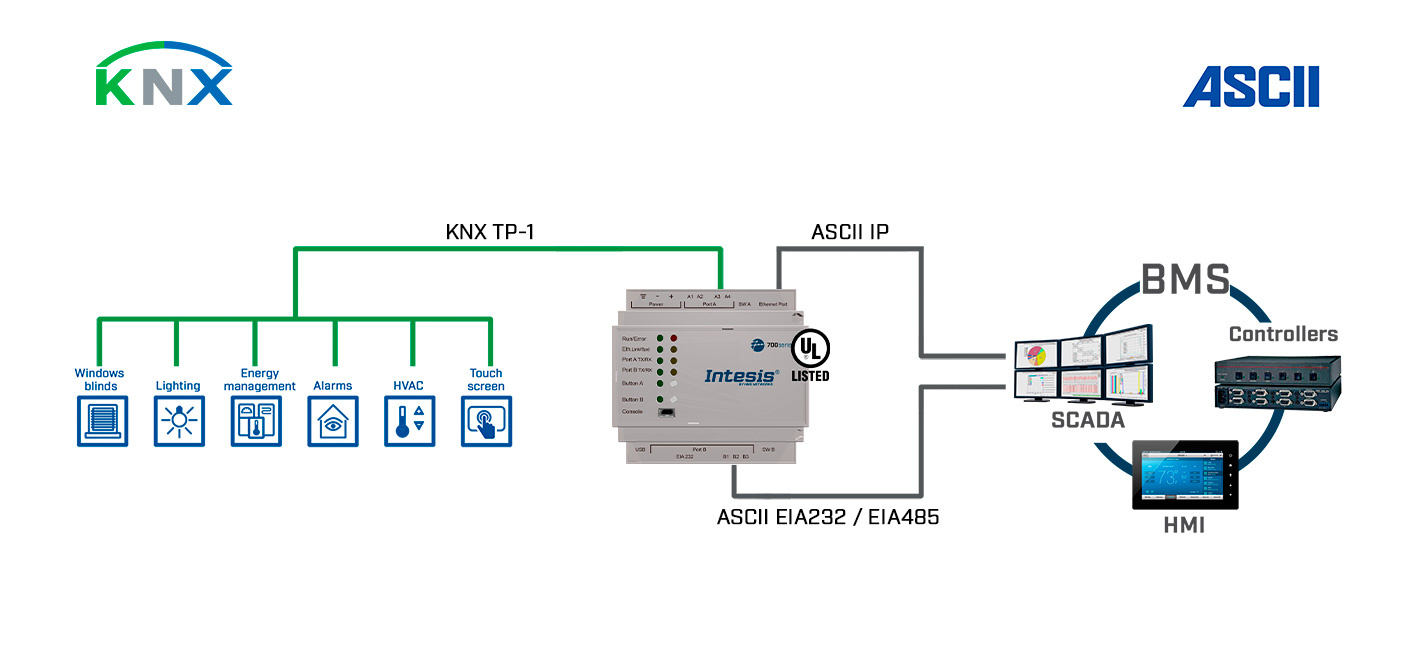

The IN701-KNX series gateway is a common platform for BACnet, KNX TP and Modbus, with flexible and configurable gateways to integrate all BACnet, KNX TP or Modbus devices into an ASCII system.

View here: Introduction Intesis 700 series

Other models:

IN701KNX1000000 Intesis protocol translator with KNX, Serial and IP support - 100 points
IN701KNX2500000 Intesis protocol translator with KNX, Serial and IP support - 250 points
IN701KNX6000000 Intesis protocol translator with KNX, Serial and IP support - 600 points
IN701KNX1K20000 Intesis protocol translator with KNX, Serial and IP support - 1200 points
IN701KNX3K00000 Intesis protocol translator with KNX, Serial and IP support - 3000 points
