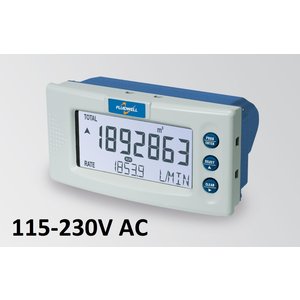

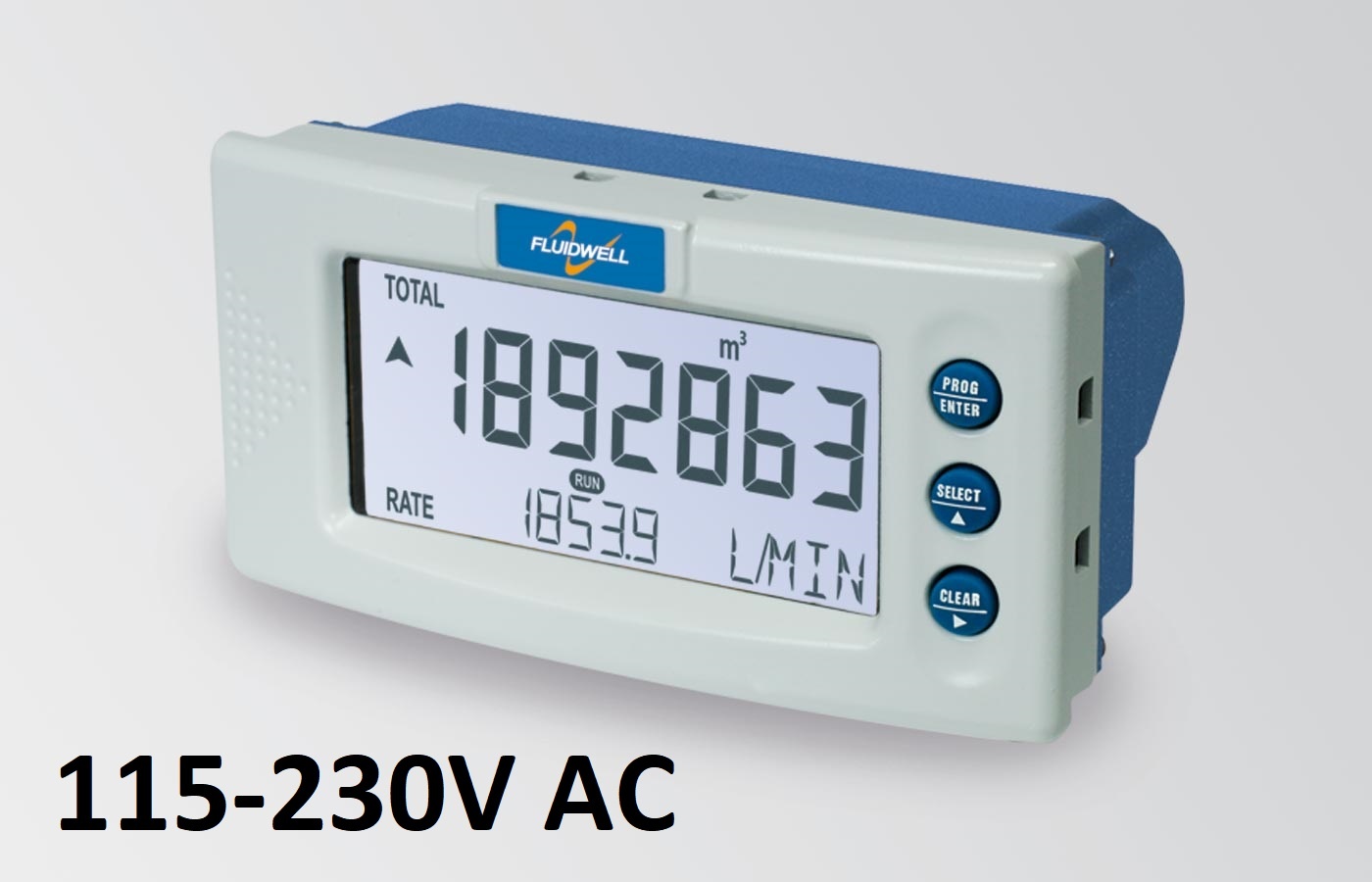

The D012 is a panel mount local indicator to display actual flow rate, total and accumulated total. The total can be set to zero by pressing the CLEAR button twice. However, the added total of eleven digits cannot be reset to zero. The unit of measure to be displayed is easily selected via an alphanumeric configuration menu.

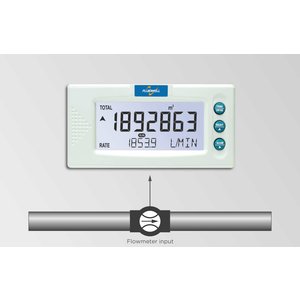

Basic flow (flow) measurement where a local flow indication and totalizer function is required without transmitter functionality. The D-series with standard DIN 144x72mm dimensions has a large display and can display your current flow and total simultaneously.
Flow rate Indicator / Totalizer
Pulse (Reed switch, Namur, NPN, PNP and coil)

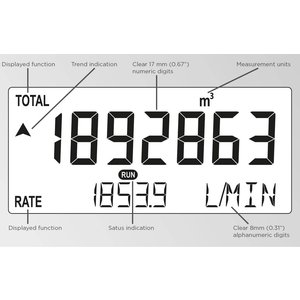

LCD, 7 characters | 17mm numeric & 8mm alphanumeric
L, m3, GAL, USGAL, kg, lb, bbl, or no unit.
IP66 / 67 aluminum panel mounting
-40 ° C to + 80 ° C (-40 ° F to + 176 ° F).
115 - 230V AC-in + sensor supply
