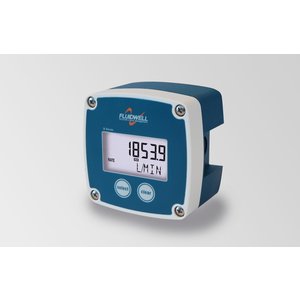

The B-Basic is a local indicator to show the current flow, total and accumulated total. The total can be reset to zero by pressing the CLEAR button twice. On-screen engineering units are easy to configure from a wide selection.

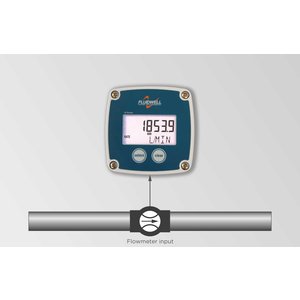

Basic flow (flow) measurement where a local flow indication and totalizer function is required without transmitter functionality. The B series offers you an economical solution for common industrial applications.
Flow rate Indicator / Totalizer
Pulse (Reed switch, Namur, NPN, PNP and coil)

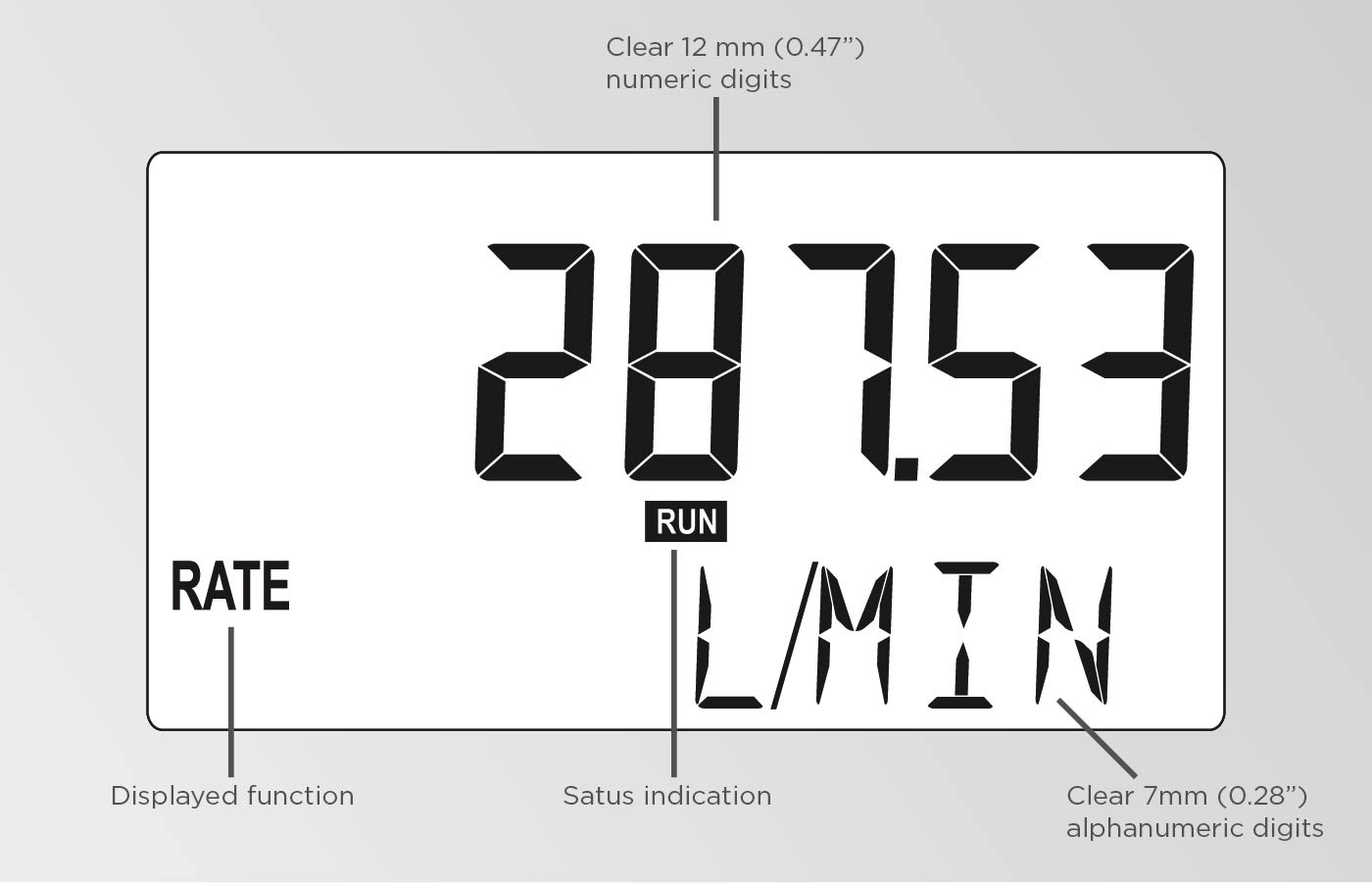

LCD, 7 characters | 12mm numeric & 7mm alphanumeric
L, m3, US gal, igal, Oil bbl, kg, lb or none.
IP65 GRP plastic field housing
-20 ° C to + 60 ° C (-4 ° F to + 140 ° F).
Lithium AA battery * and 10 - 30V DC-in
* backlight only works when connected to 10-30V DC-in
