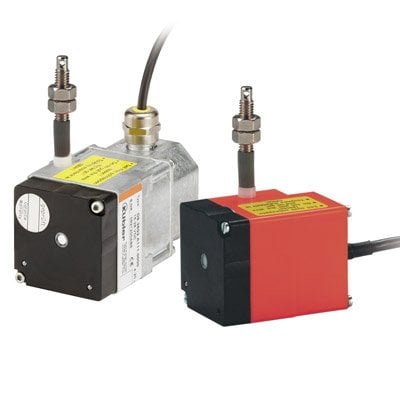

Kübler D5.3501.A331.0000, draw wire encoder A40 / A41, 1000mm / 10kΩ potentiometer
The miniature draw wire length indicators A40 and A41 with 1000 mm measuring length and analog output are characterized by the compact design. They are available with a potentiometer, voltage or current output.
- Article number:
- D5.3501.A331.0000
- Availability:
- In stock
- Delivery time:
- on stock
| Downloads & links |
| Data sheet A40 / A41 |
| Encoder catalog (23 MB) |
| Encoder selection tool |
| Website Kübler |
|
Product family
Size
Speed
Measuring range
Accuracy
Protection max.
Interfaces
Connection
Resolution max.
Temperature
Nutrition
|
Draw wire A40 / A41
50x50x77 mm
0.8 m / s
1000mm
± 0.35%
IP 50
potentiometer output 10kΩ
-
0.15 mm
0 ... +50 ° C
-
|
The draw wire sensors A40 and A41 with analog output are characterized by the compact design. They are available with a potentiometer, voltage or current output.
