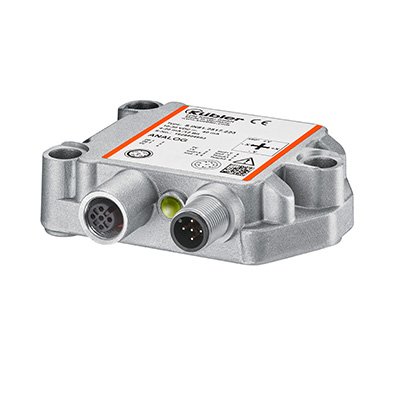

Kübler Inclinometer 8.IN88.2661.123, 2 angles, ± 85 °, Modbus RTU

With the Kubler 8.IN88.2721.123 Modbus RTU inclinometer, 2 angles of ± 85 ° can be electronically measured. power supply 10..30 VDC

Article number:: 8.IN88.2661.123
Delivery time:: 3 weeks

€375,00

Excl. tax

€453,75

Incl. tax

Add to comparison Add your review

Downloads and links

Datasheet IN88

Product video

Website Kübler

With the IN88 inclinometers, 2-dimensional angles in the range of ± 85 ° or 1-dimensional angles up to 360 ° can be measured. With their high robustness, their level of protection up to max. IP69k and their wide temperature range from -40 ° C to + 85 ° C. Inclinometers are used, among other things, for measuring slopes in construction, aviation, shipping and road construction.

Dimensions
Protection
interface
Connections
Resolution
Accuracy

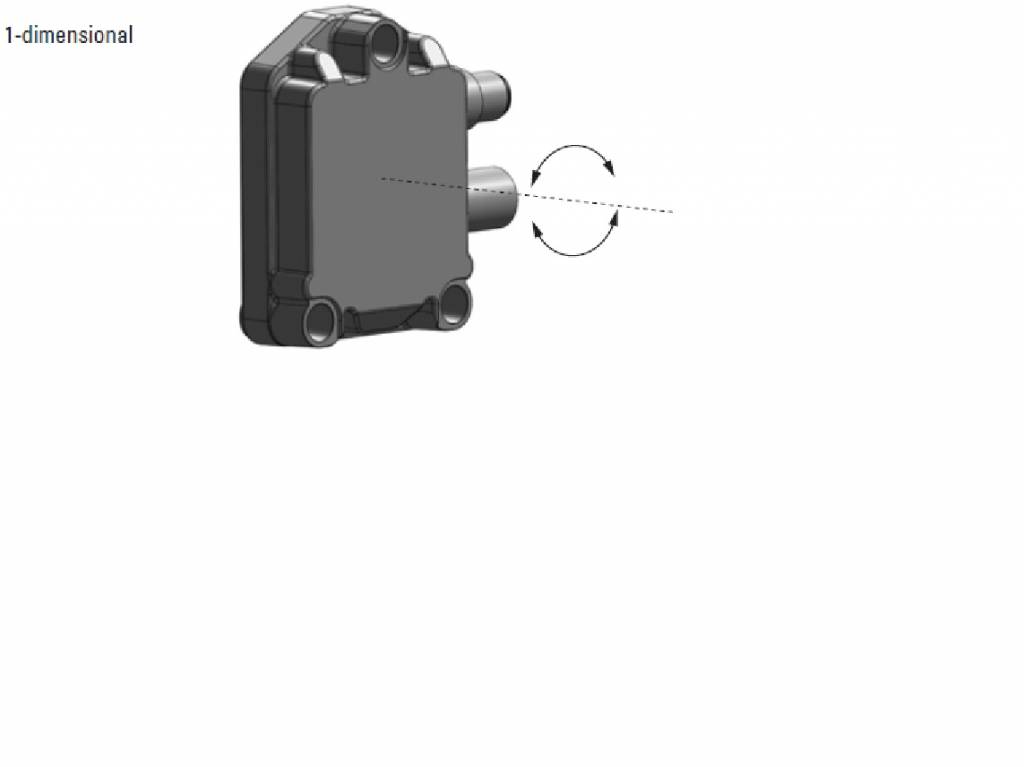

Measuring range 1-D

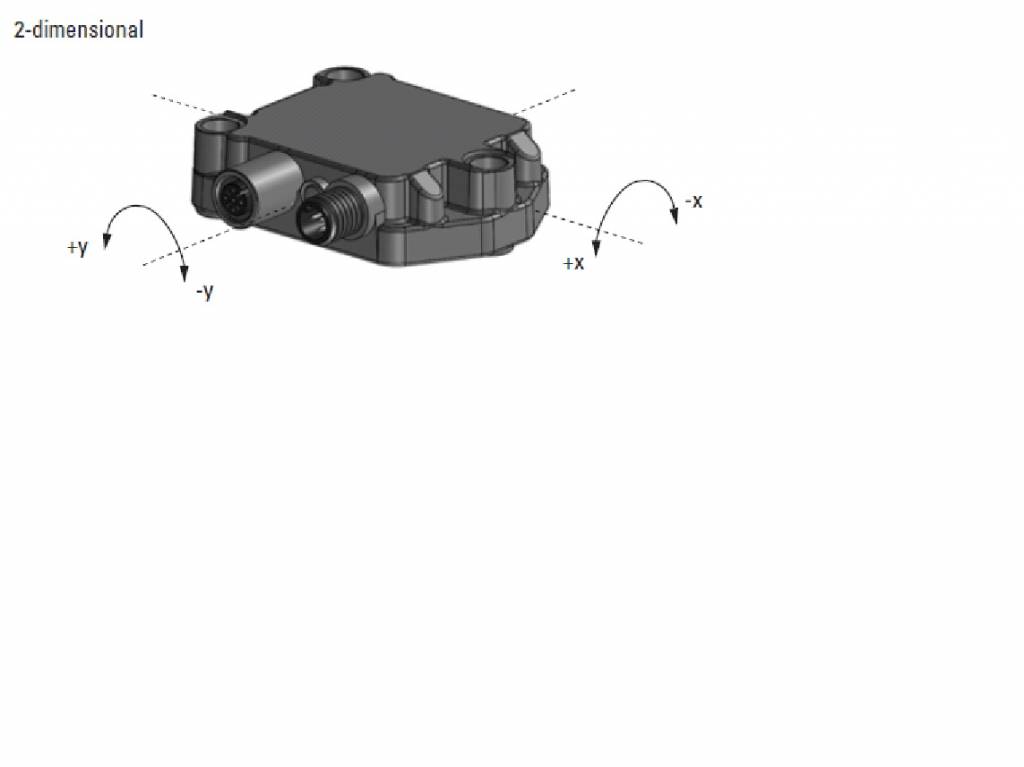

Measuring range 2-D
Working temperature
Power supply

75.4x80x23 mm
max IP69k
Modbus RTU
M12 connectors
0 ... 0.01 °
± 0.2 °
0 ... 360 °
± 85 °
-40 ° C ... 85 ° C
10 ... 30 VDC
